Spoke Set Kawasaki KX 250 18-inch 78-79 Rear wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- E-mail us, we reply swiftly! order@cross-center.com
The Swedish manufacturer!
Description
Article no.: 50-0502

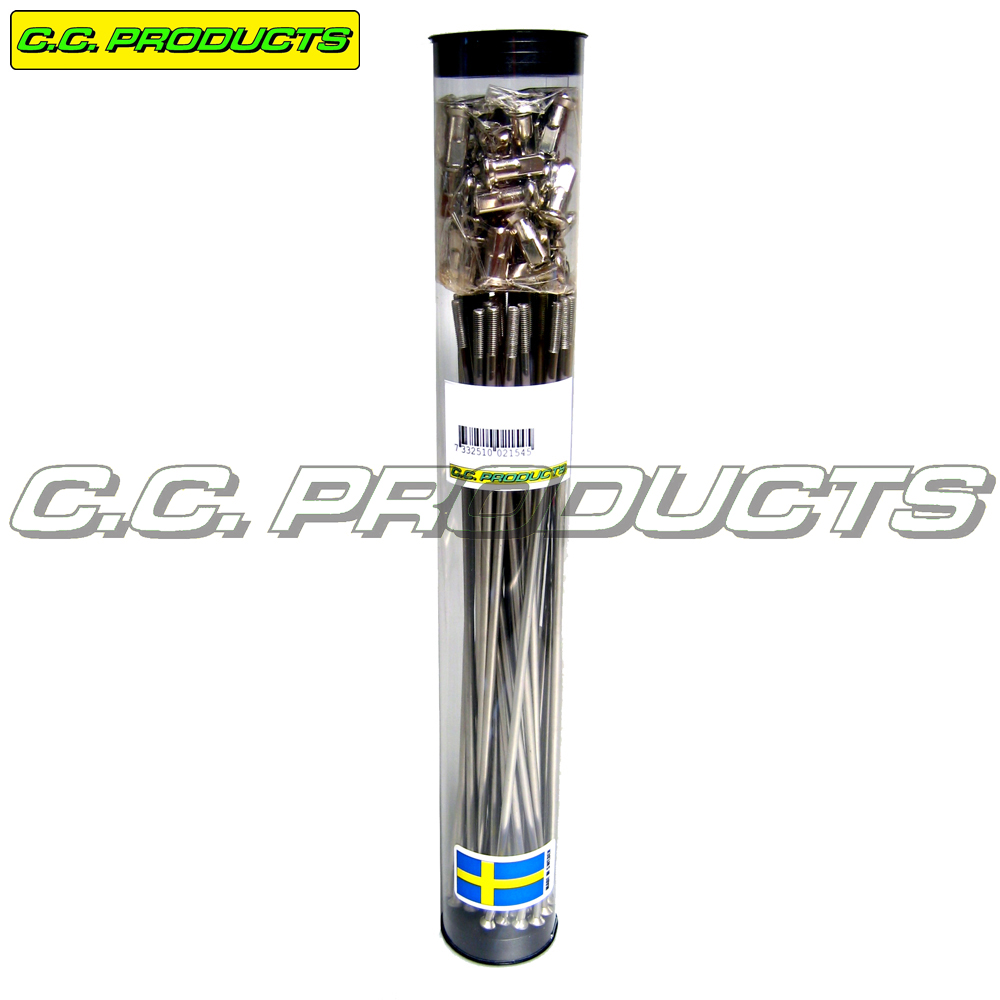

CC Products stainless spoke set
Fits the following models:
KAWASAKI
KX 250 78-79
For 18-inch rear wheel with hub 41034-1007-21.

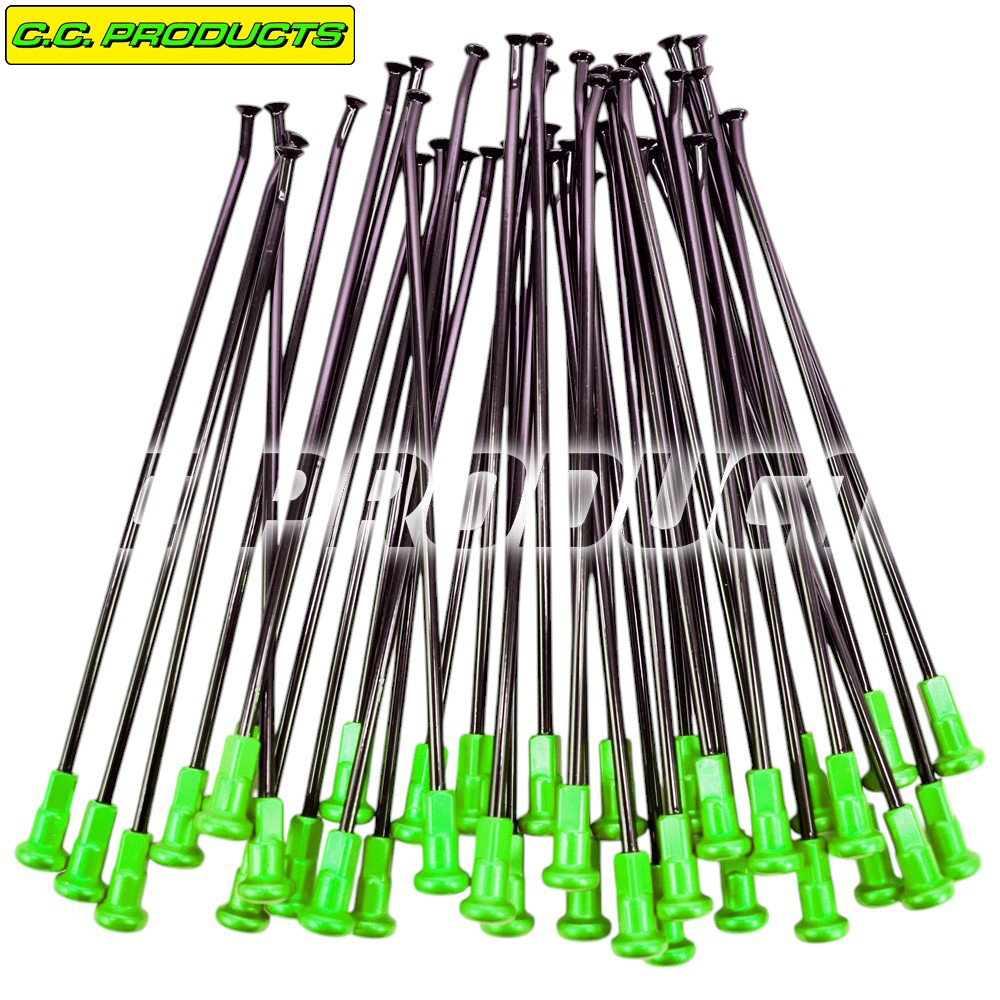

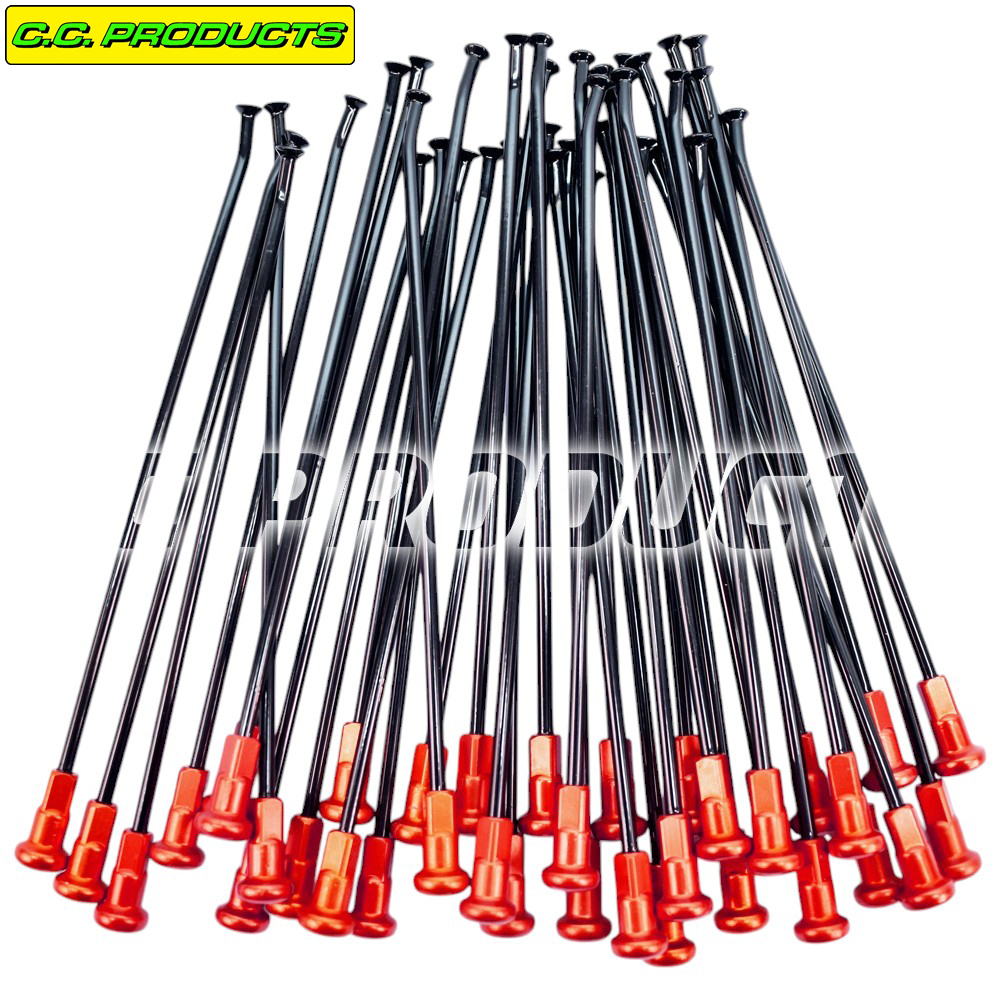

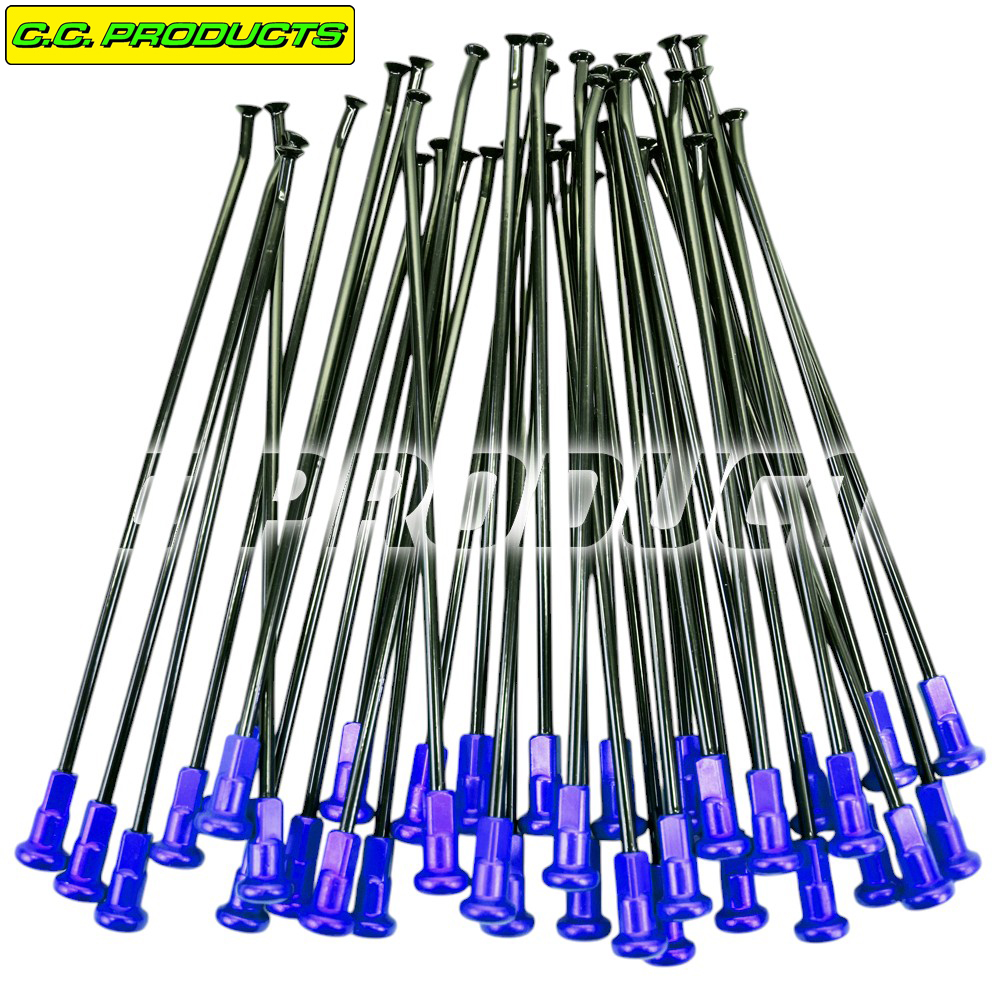

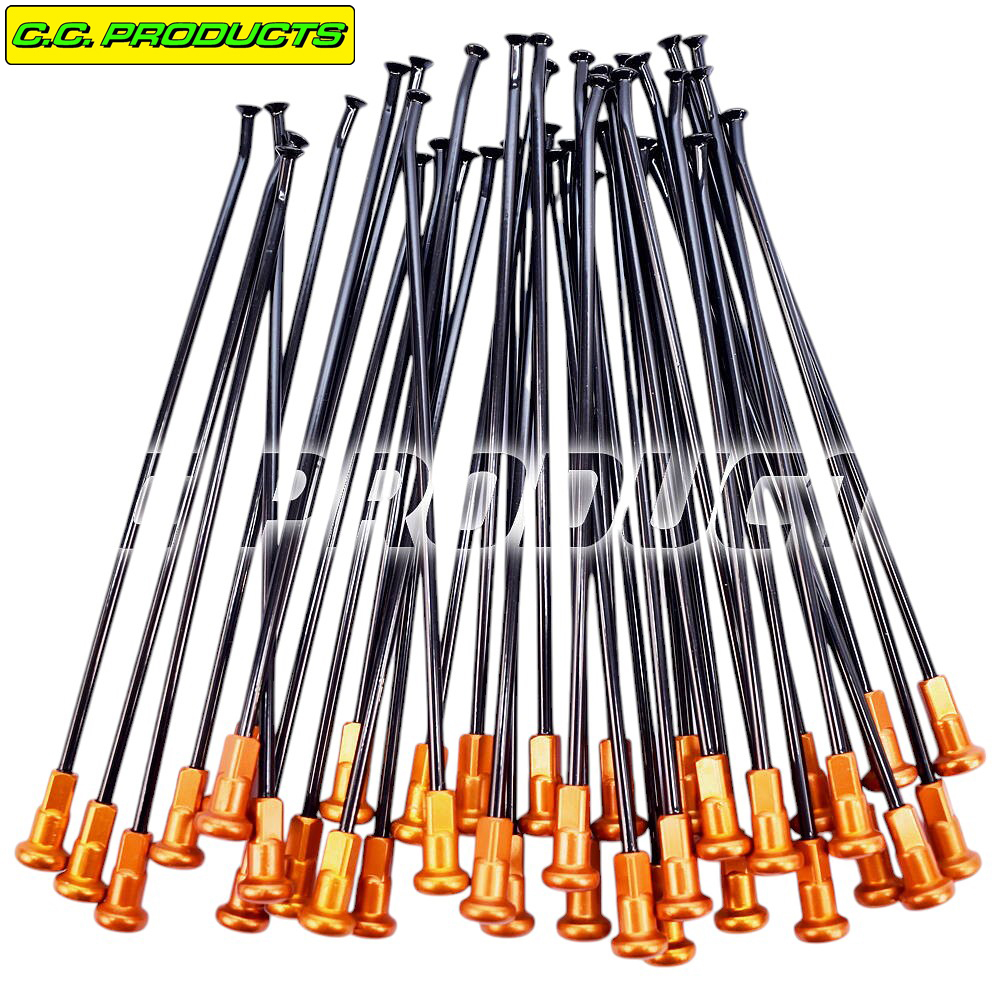

This spoke set has 36 spokes with spoke nipples.
Spoke size: 9 spokes of 4x159 mm, inner brake side.
OEM Ref. 41028-1003.
Spoke size: 9 spokes of 4x160 mm, outer brake side.
OEM Ref. 41027-1004.
Spoke size: 9 spokes of 4x175,5 mm, outer sprocket side.
OEM Ref. 41028-1002.
Spoke size: 9 spokes of 4x181,5 mm, inner sprocket side.
OEM Ref. 41027-1003.

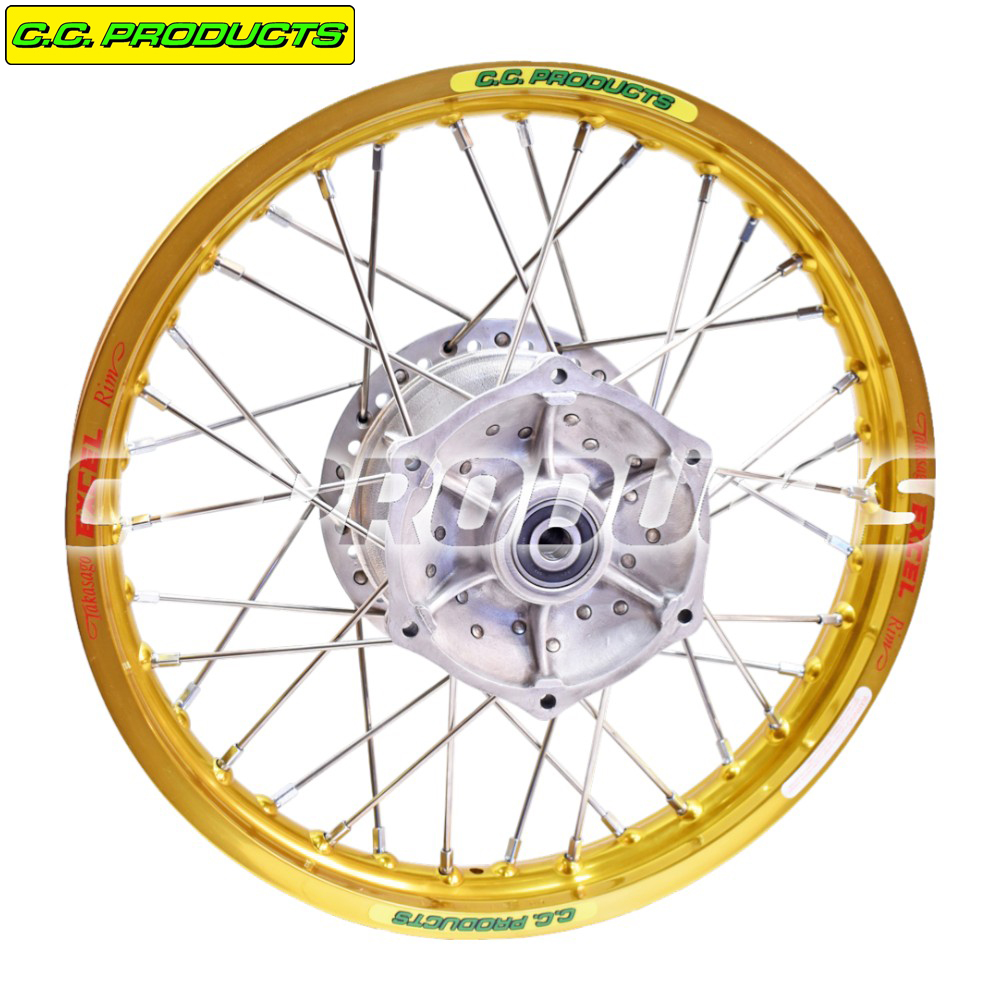

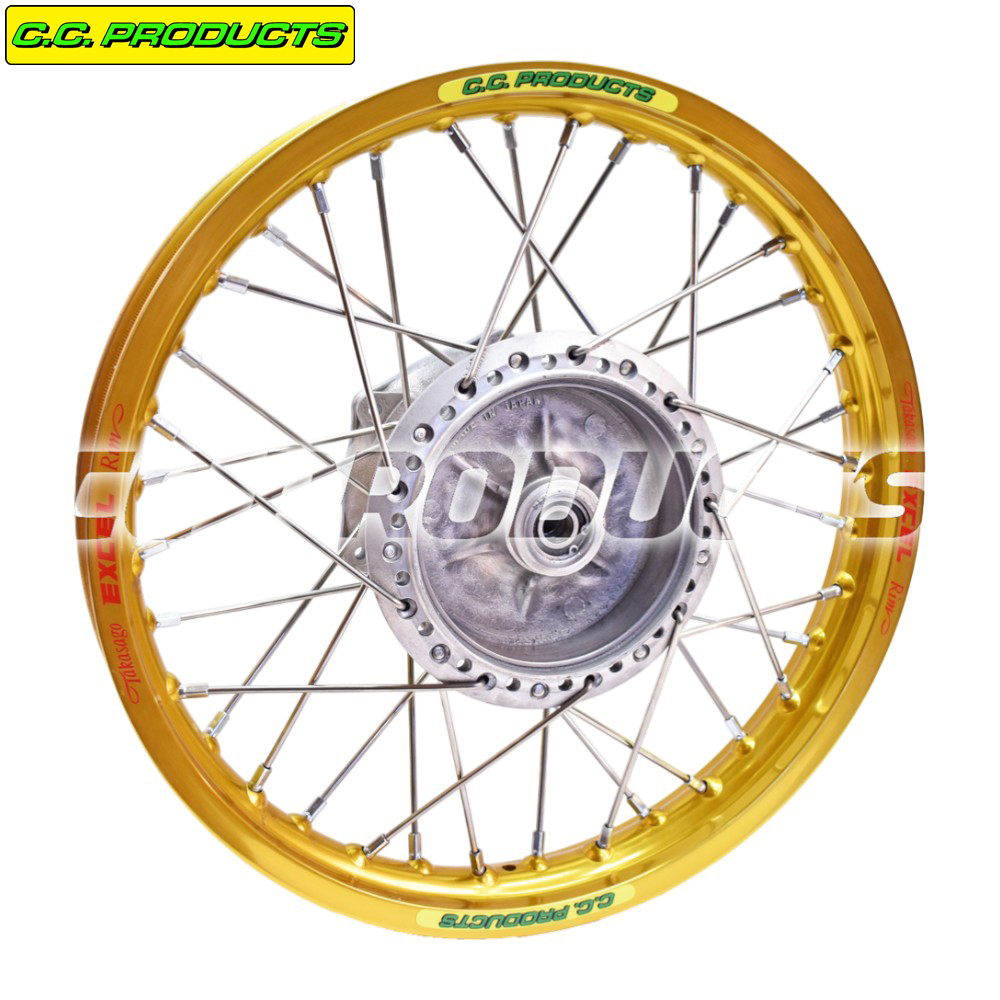

Excel rim with article number 58-533 fits this spoke set.

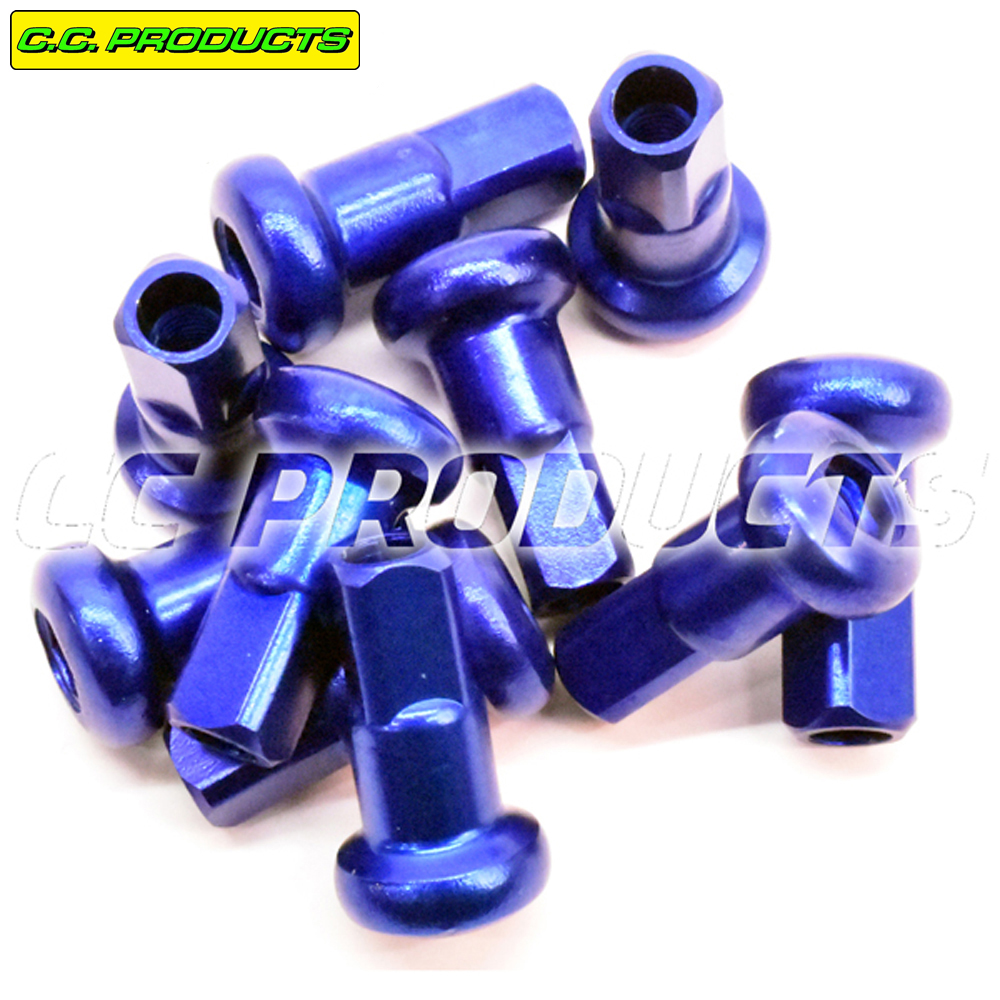

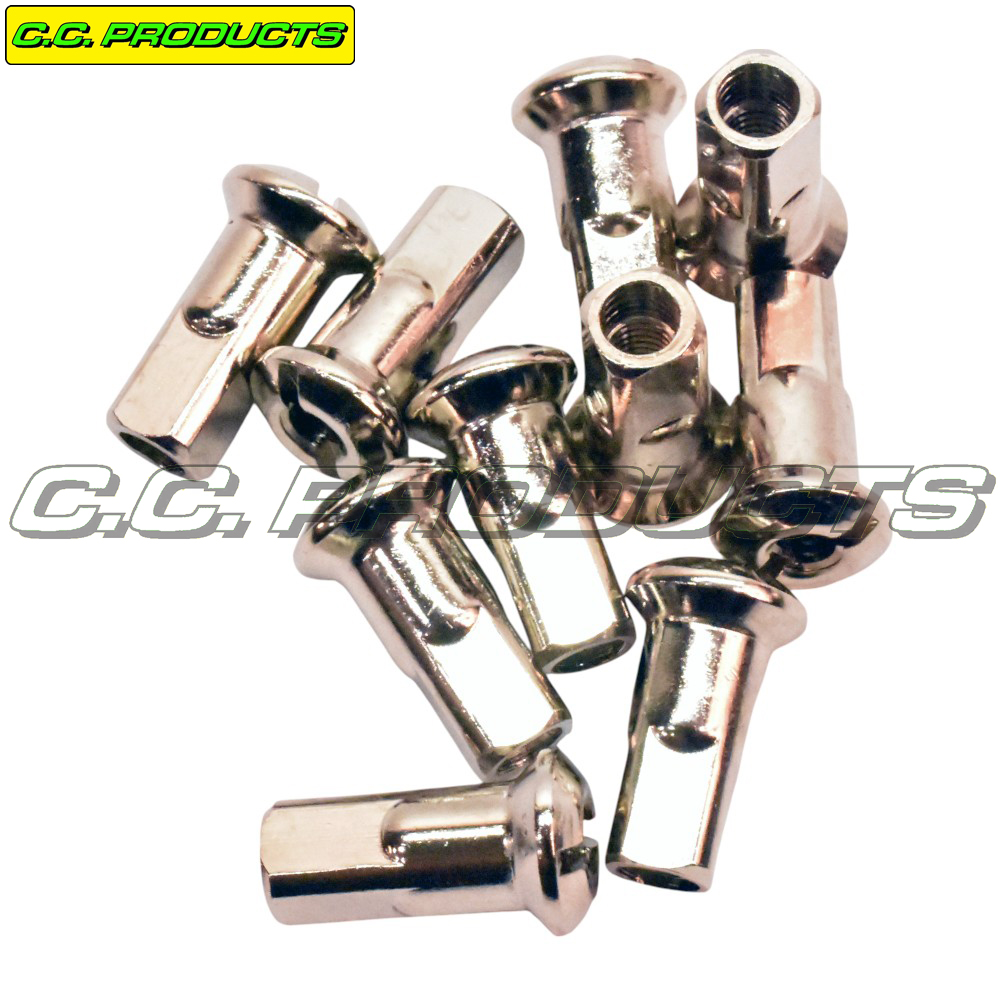

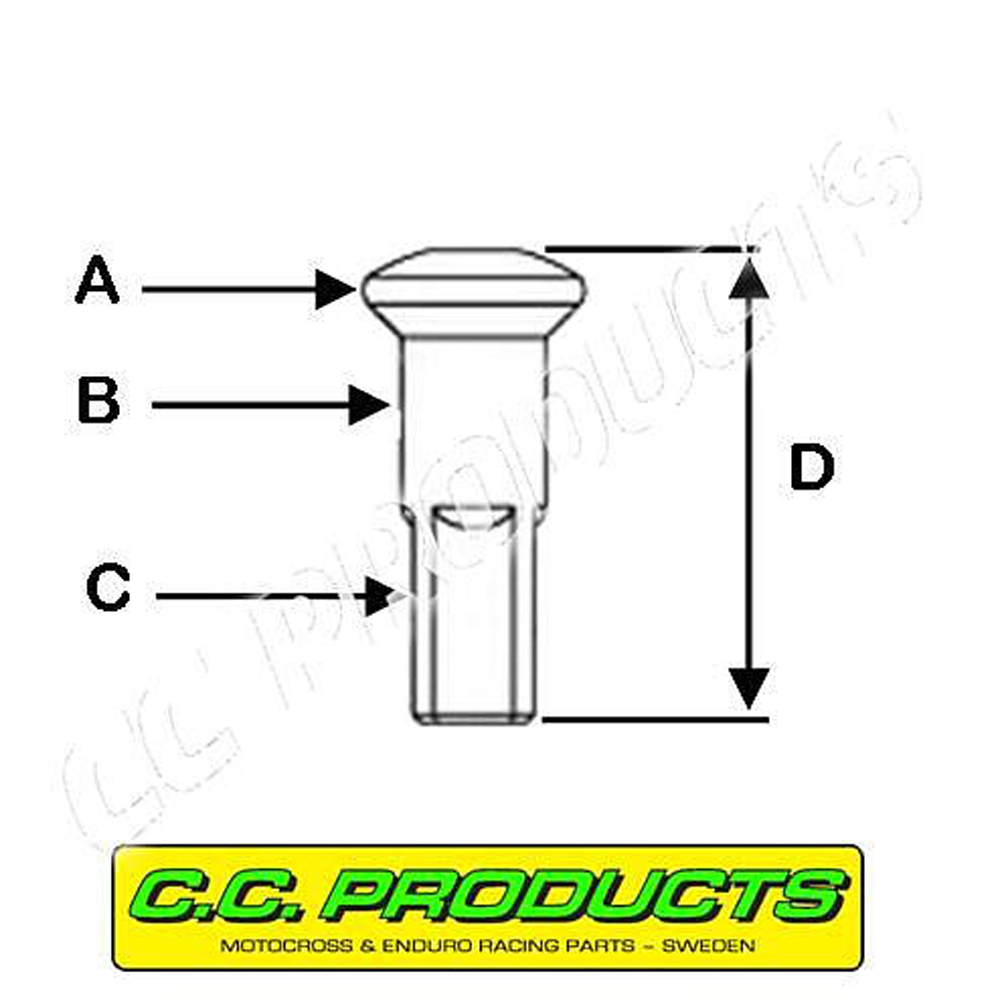

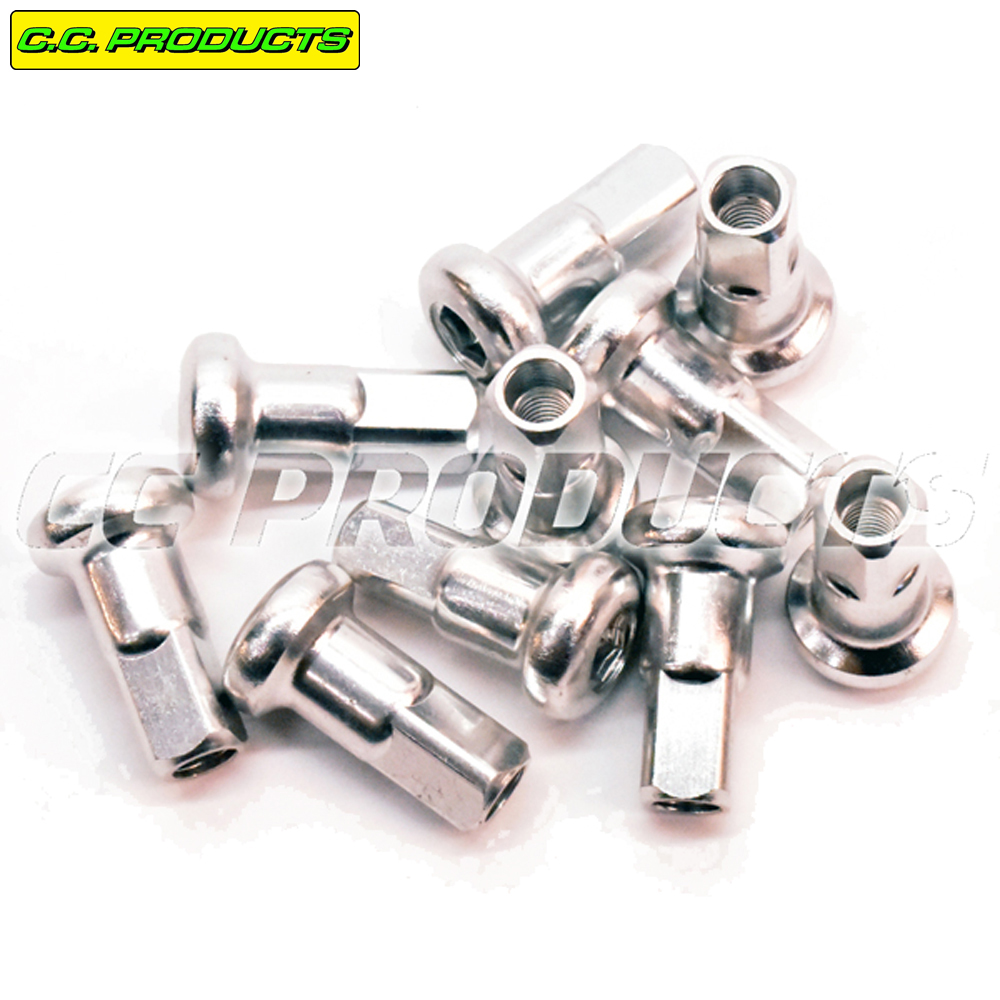

Nipple size: 7,0x20 mm. (8G/275)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 4x159 mm, have article number 50-0502-1
One spoke and nipple, 4x160 mm, have article number 50-0502-2
One spoke and nipple, 4x175,5 mm, have article number 50-0502-3
One spoke and nipple, 4x181,5 mm, have article number 50-0502-4
