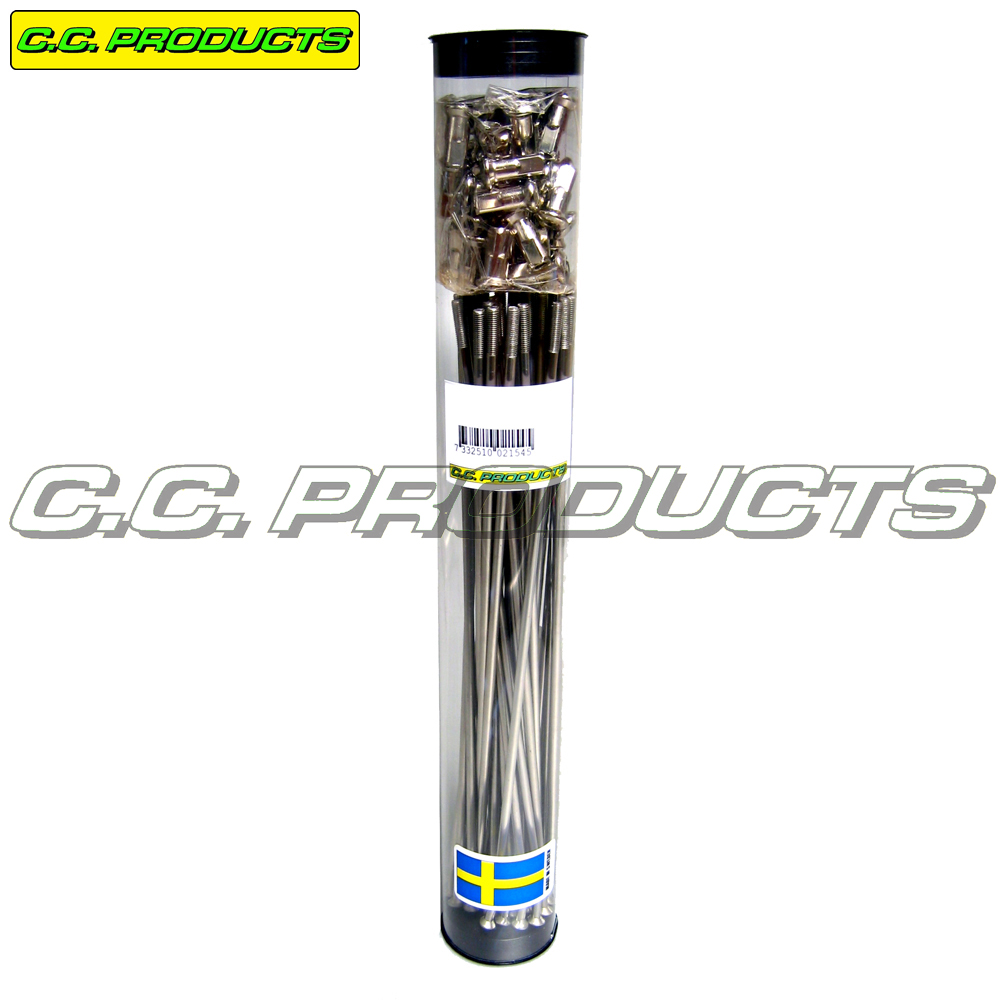

Spoke Set Triumph Thunderbird TR 65 18-inch 81-83 Rear Wheel
1,190 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- E-mail us, we reply swiftly! order@cross-center.com
The Swedish manufacturer!
Description
Article no.: 50-0782
CC Products stainless spoke set
Fits the following models:
TRIUMPH
Bonneville T 140 73-83
Bonneville T 140 AV 81-83
Bonneville T 140 "Devon" 85-88
Bonneville T 140 E 78-83
Bonneville T 140 D Special 79-82
Bonneville T 140 ES Electro 80-83
Bonneville T 140 EX Executive 81-83
Bonneville T 140 J Silver Jubilee 1977
Bonneville T 140 LE Royal Wedding 1981
Bonneville T 140 TSX 82-83
Bonneville T 140 W TSS 82-83
Thunderbird TR 65 81-83
Thunderbird TR 65 T 81-83
Tiger TR7 73-81
Tiger TR7 V 80-81
Tiger TR7 T Trail 1981

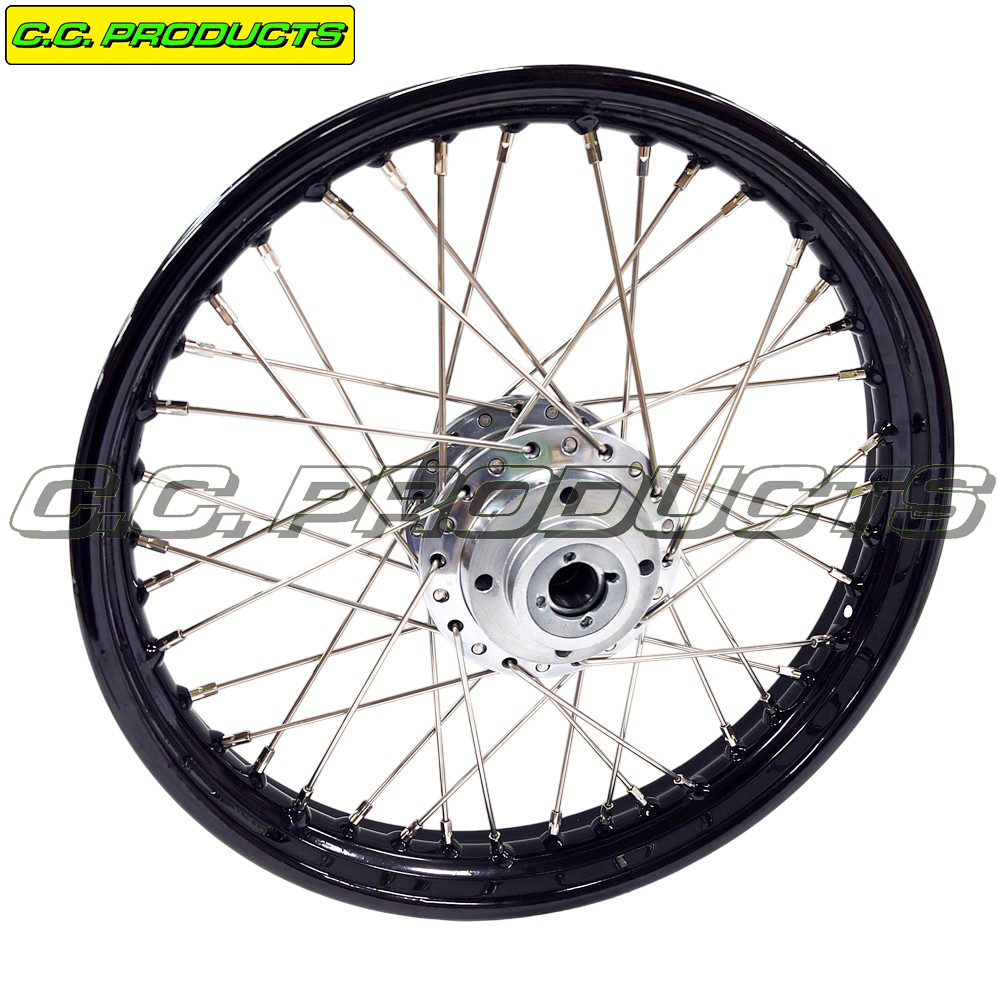

For 18-inch rear wheel with hub consisting of these parts:
37-7047, left hub.
37-7063, middle hub.
37-7059, right hub.

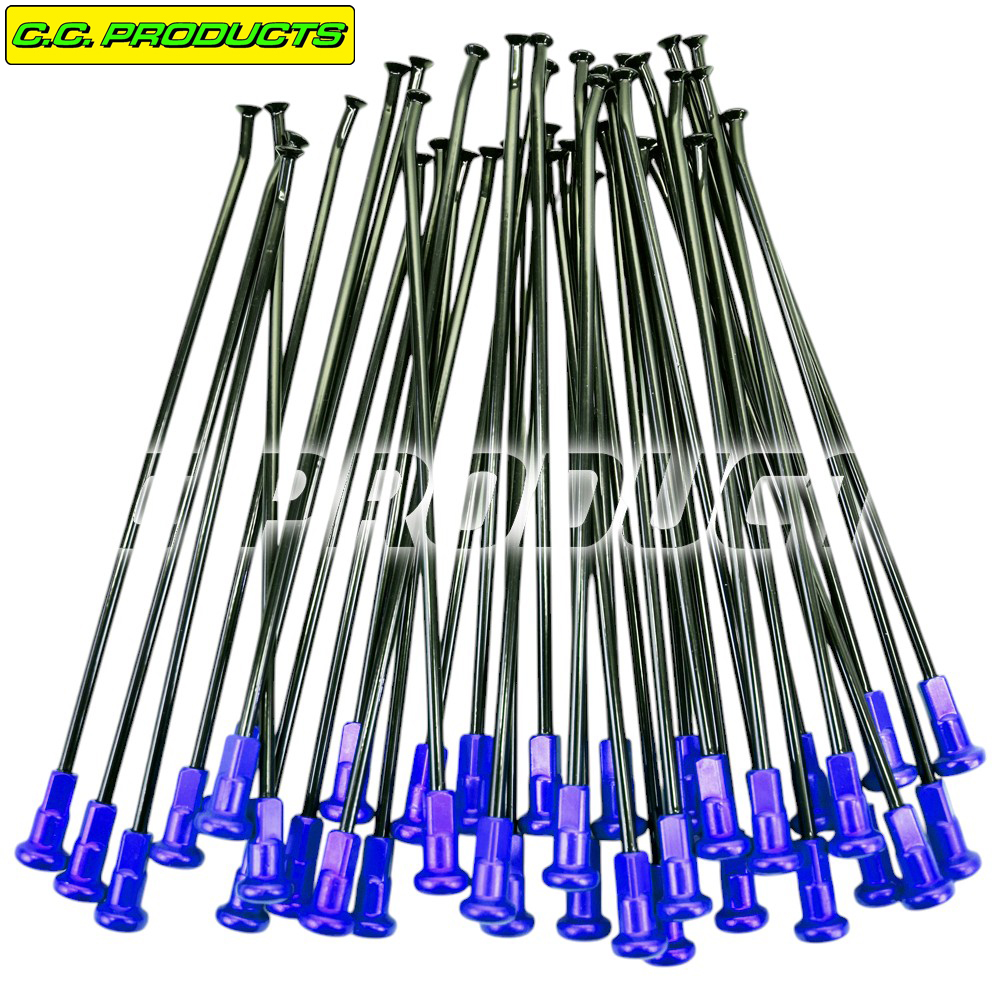

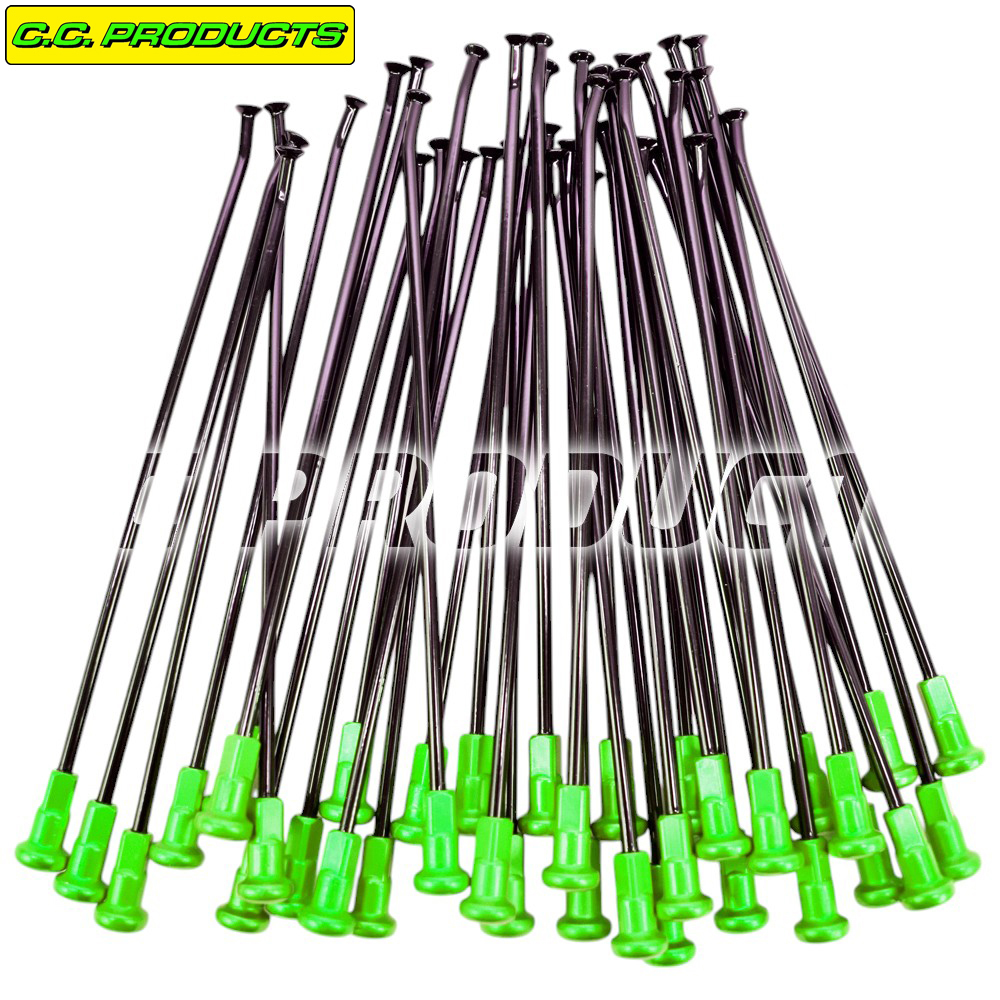

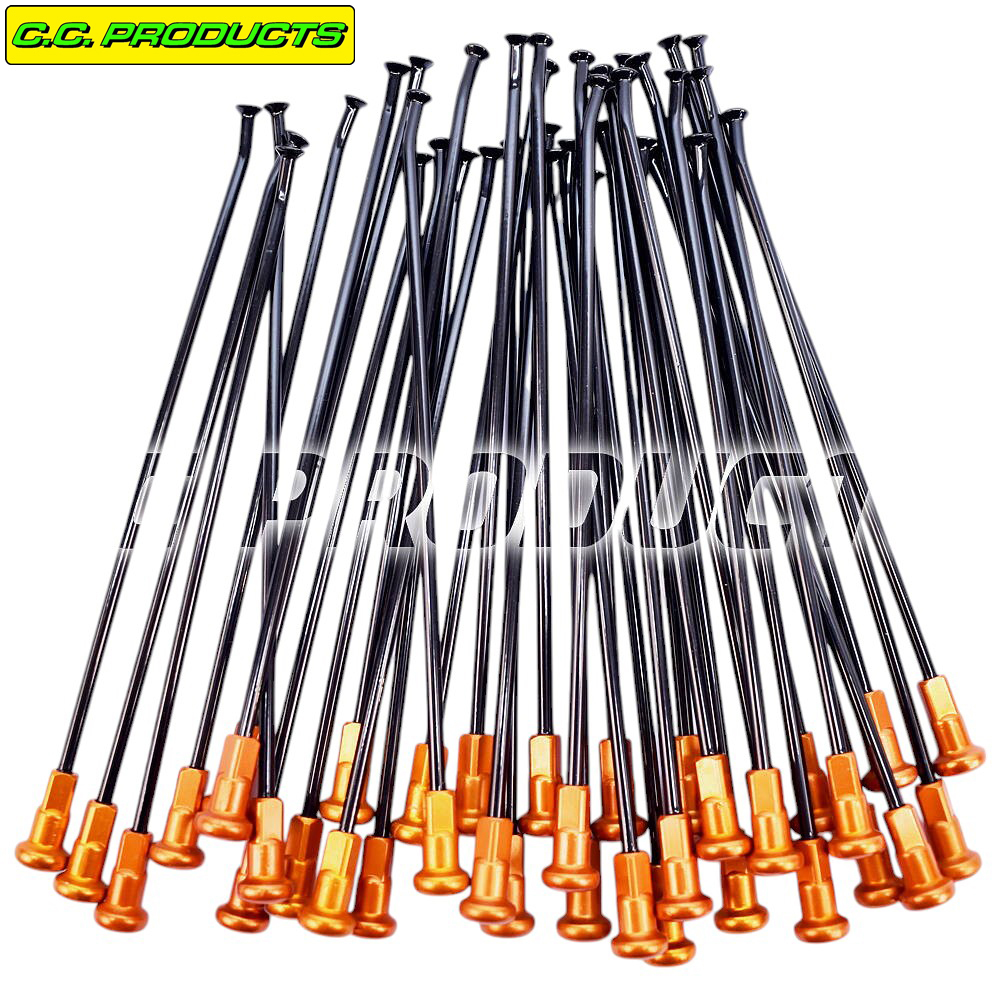

This spoke set has 40 spokes with spoke nipples.
Spoke size: 10 spokes of 3,6x187 mm. Right inner spoke.
OEM Ref. 37-7033.
Spoke size: 10 spokes of 3,6x190 mm. Right outer spoke.
OEM Ref. 37-7032.
Spoke size: 20 spokes of 3,6x190 mm. Left outer and inner spoke.
OEM Ref. 37-7031.

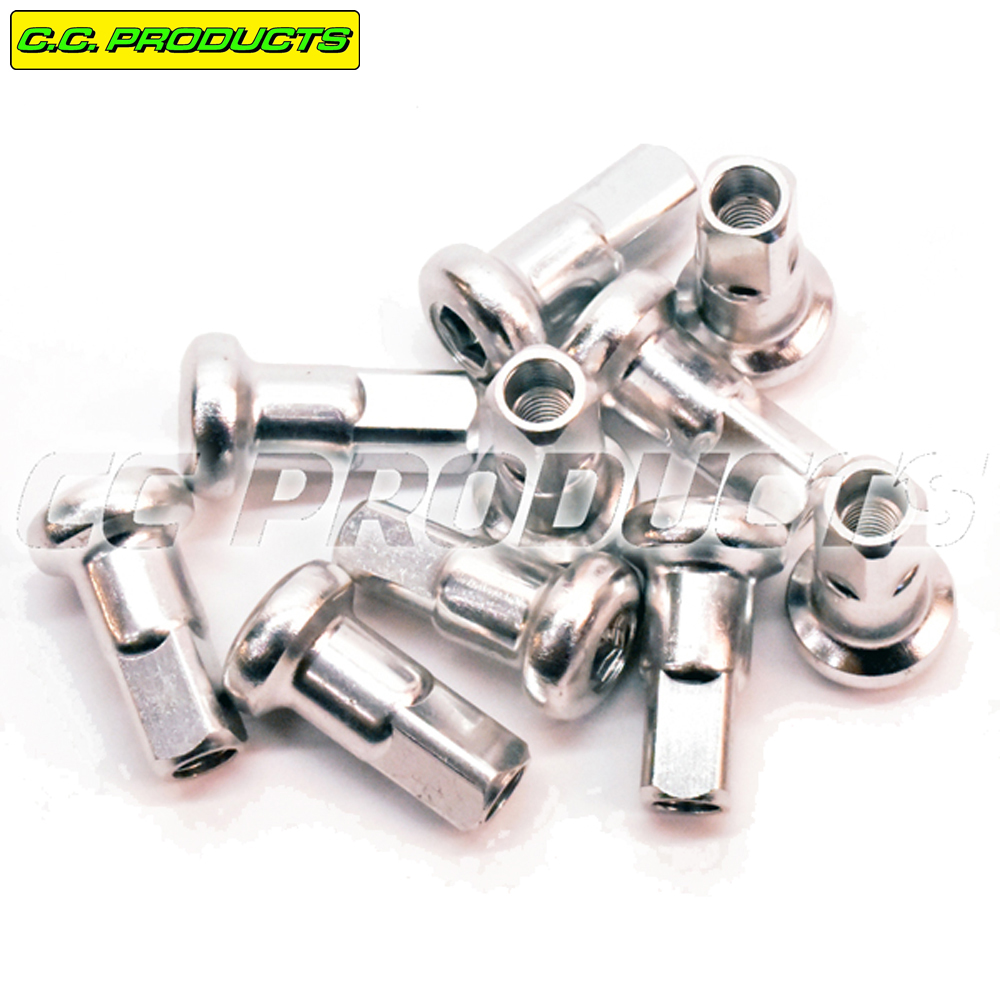

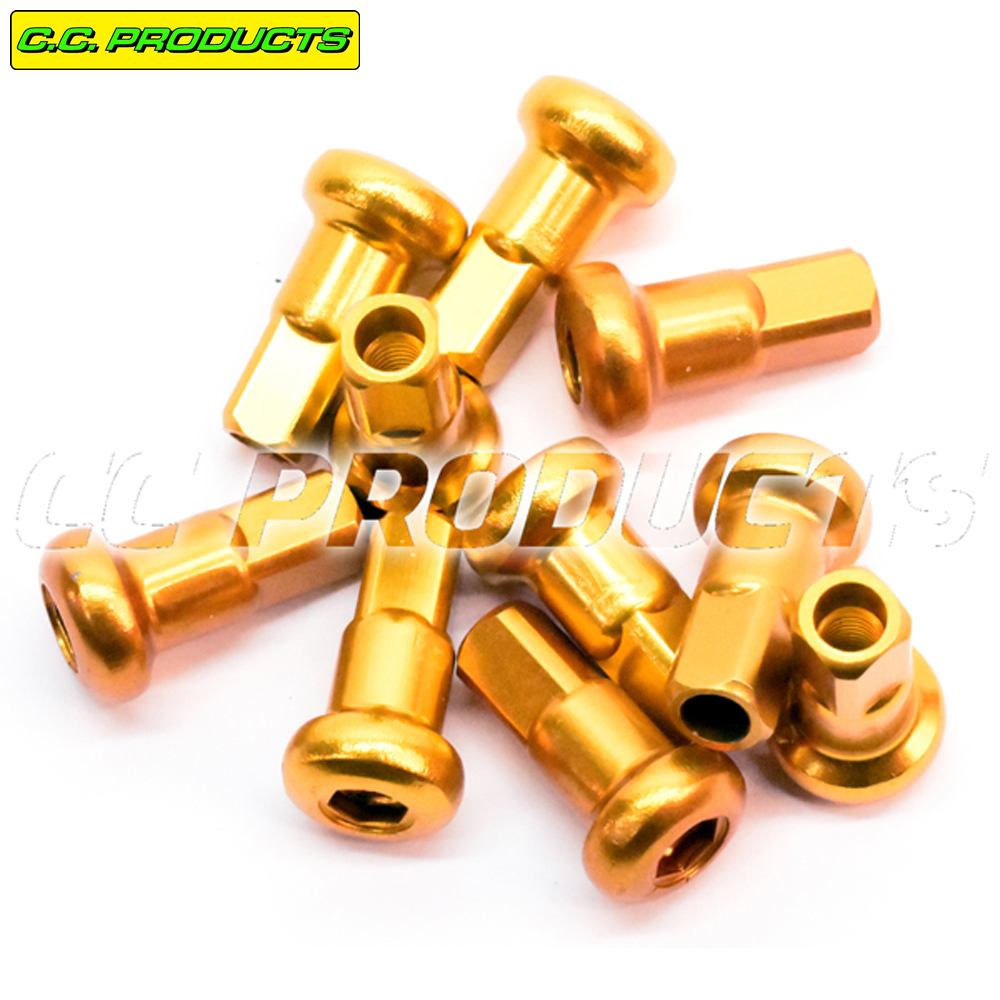

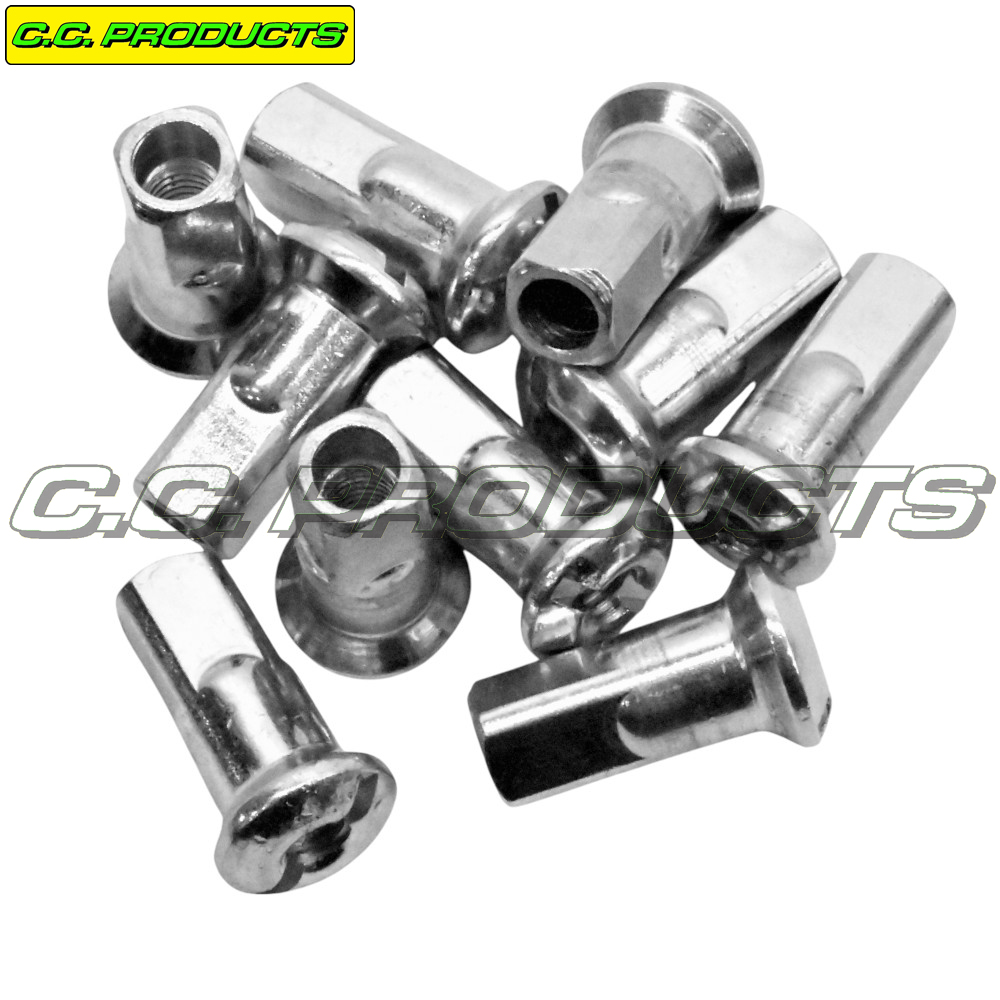

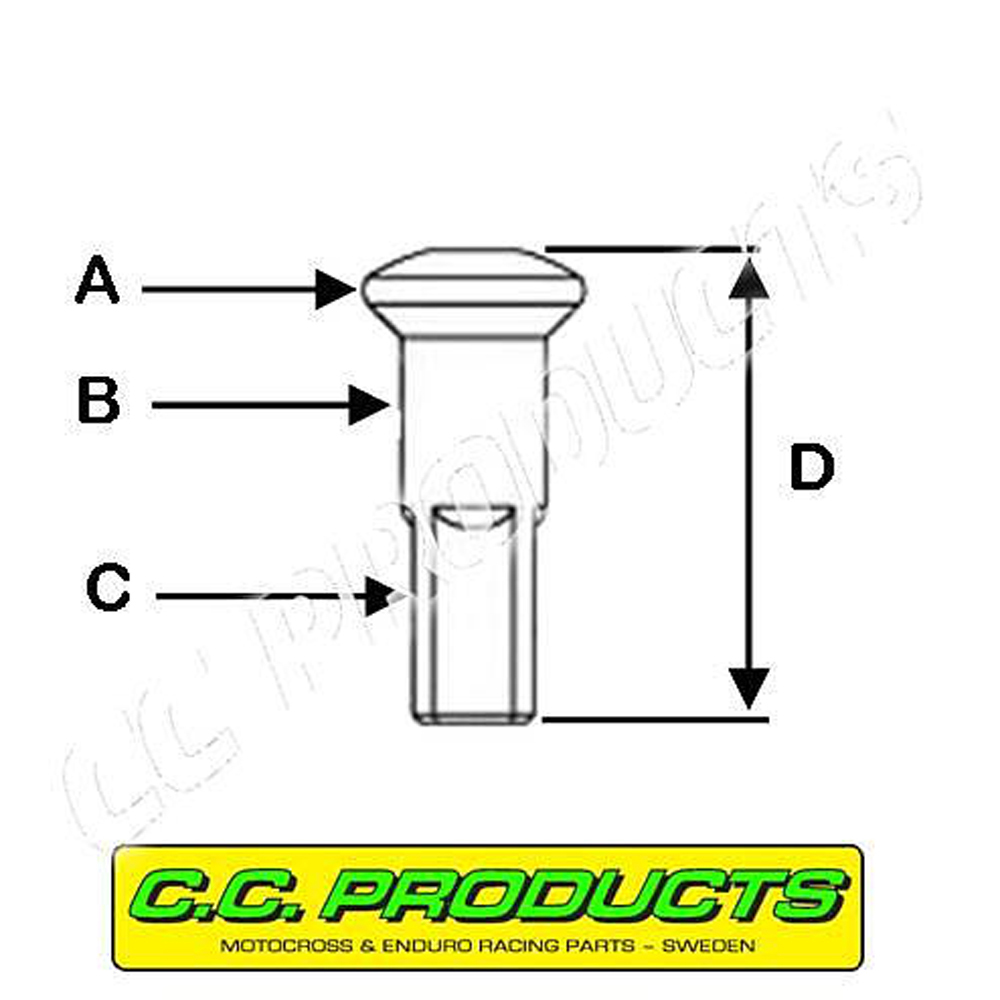

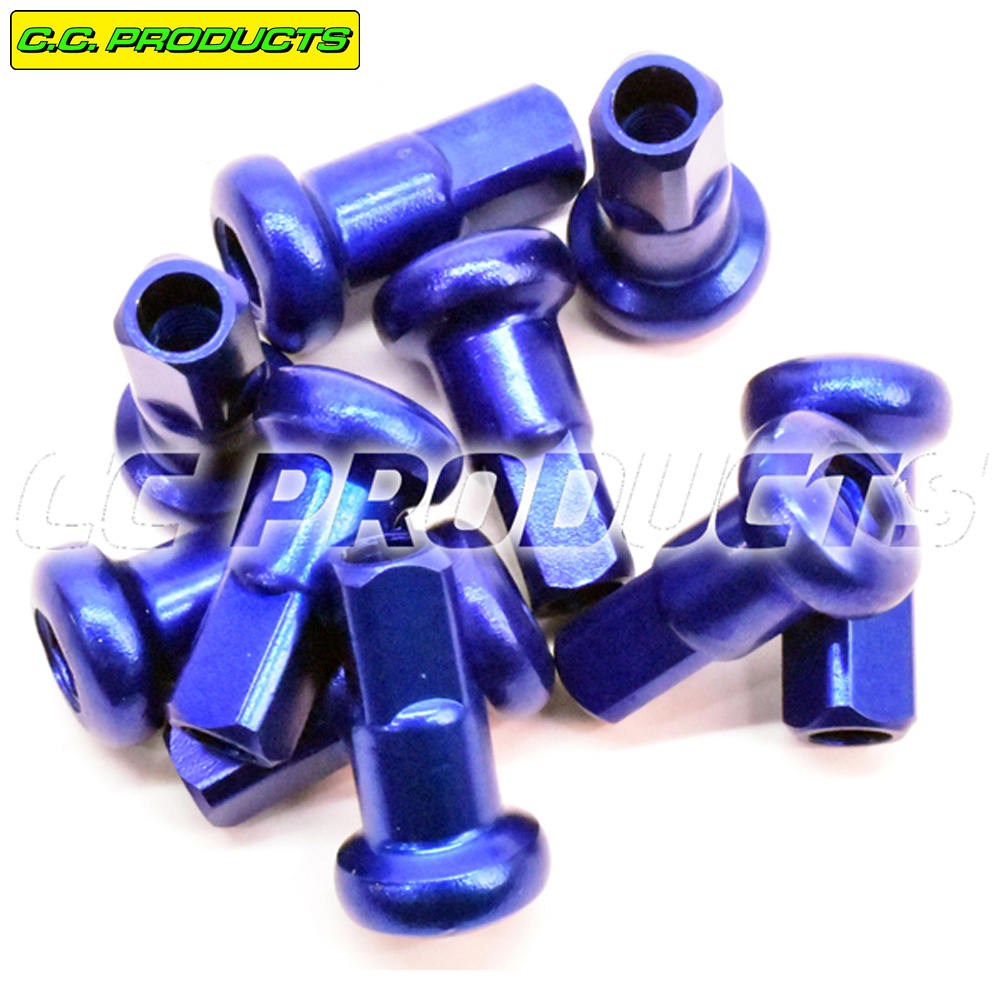

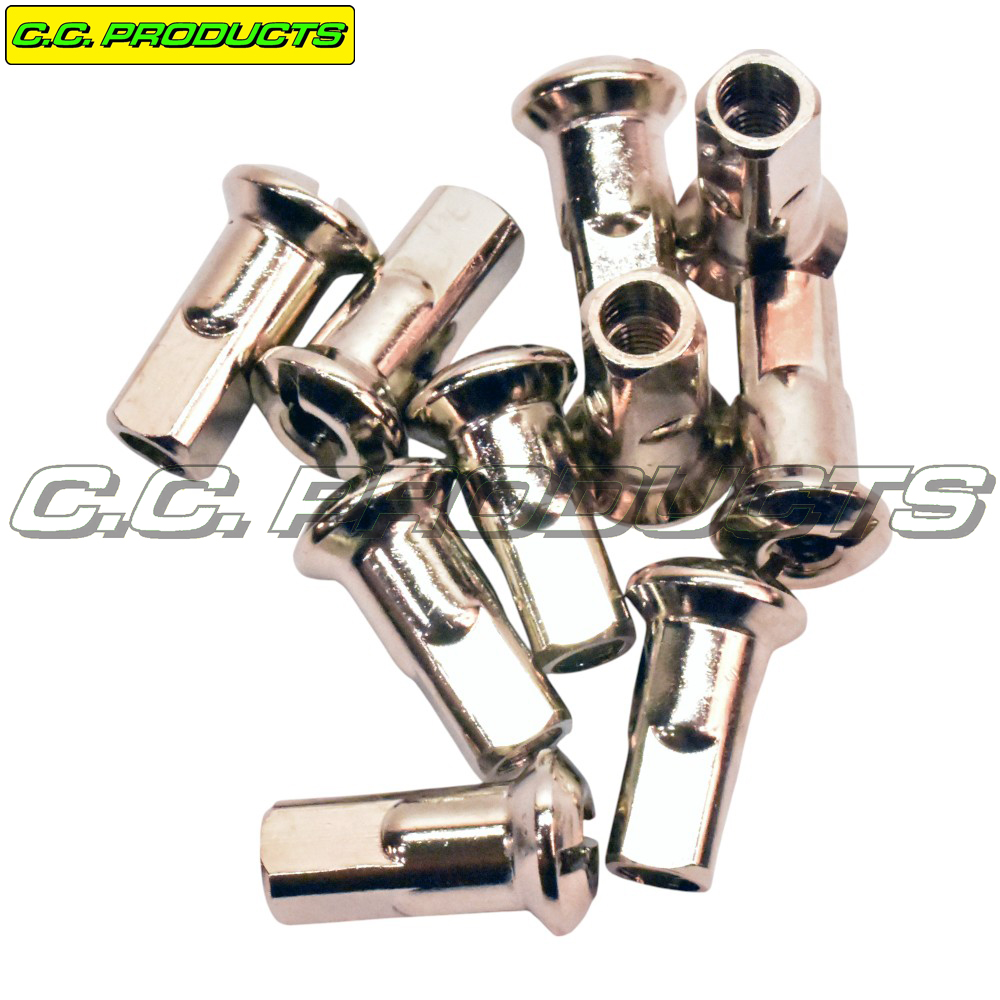

Nipple size: 6,5x20 mm. (9G/250)
If the spoke nipple holes are larger you may need to change spoke nipples to another size.
One spoke and nipple, 3,6x187 mm, have article number 50-0782-1
One spoke and nipple, 3,6x190 mm (right), have article number 50-0782-2
One spoke and nipple, 3,6x190 mm (left), have article number 50-0782-3
