Spoke Set Yamaha DT 400 18-inch 77-78 Rear Wheel
1,090 SEK per Set
CC Products spokes are made in our spoke machine in our own warehouse in Sweden. We use Swedish stainless steel spoke wire with a tensile strength of 1450 N/mm2 and a yield strength of 1250 N/mm2!
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
The spokes are manufactured as accurately as possible to OEM specifications and sold as replacement spokes for original hubs and rims unless otherwise stated.
If you do not find what you are looking for then we can manufacture spokes according to sample or drawing.
(Optional)
- E-mail us, we reply swiftly! order@cross-center.com
The Swedish manufacturer!
Description
Article no.: 50-0295

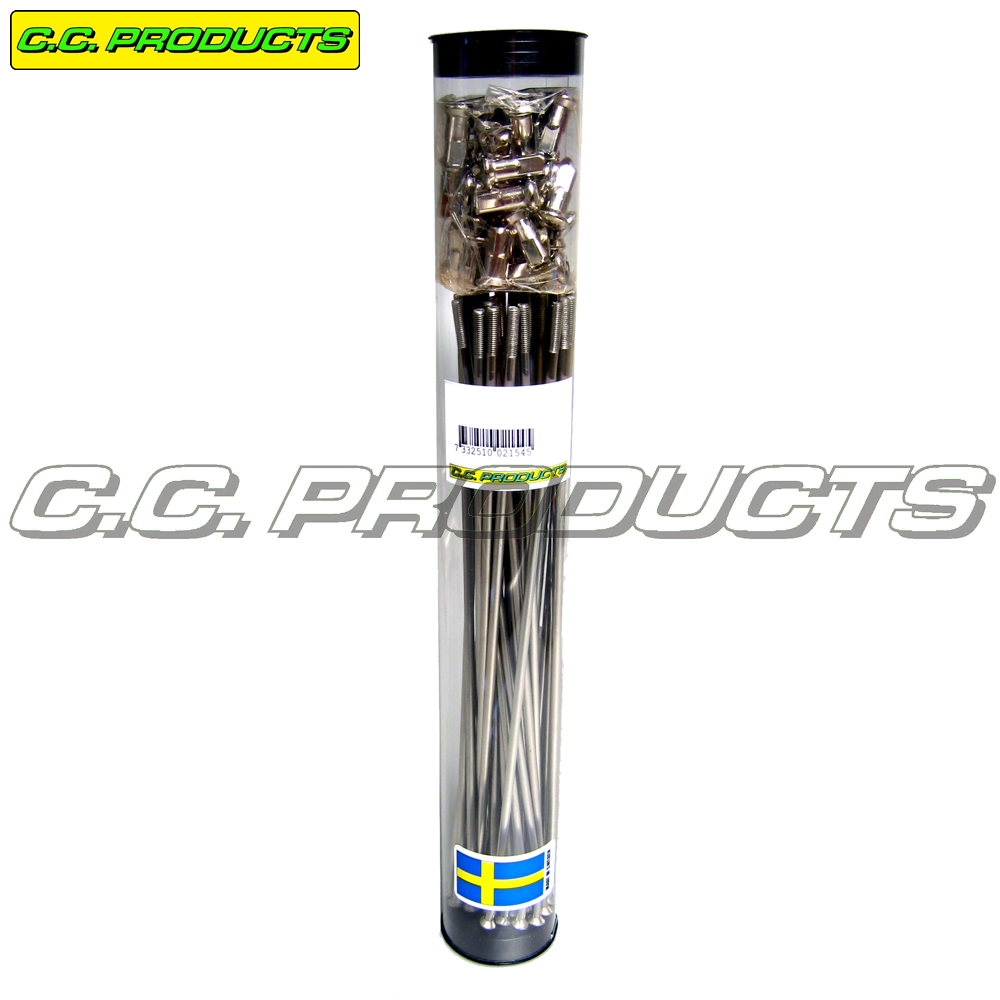

CC Products stainless spoke set
Fits the following models:
YAMAHA
DT 400 77-78
SR 400 14-16
SR 500 1978 och 91-95
XT 500 76-89

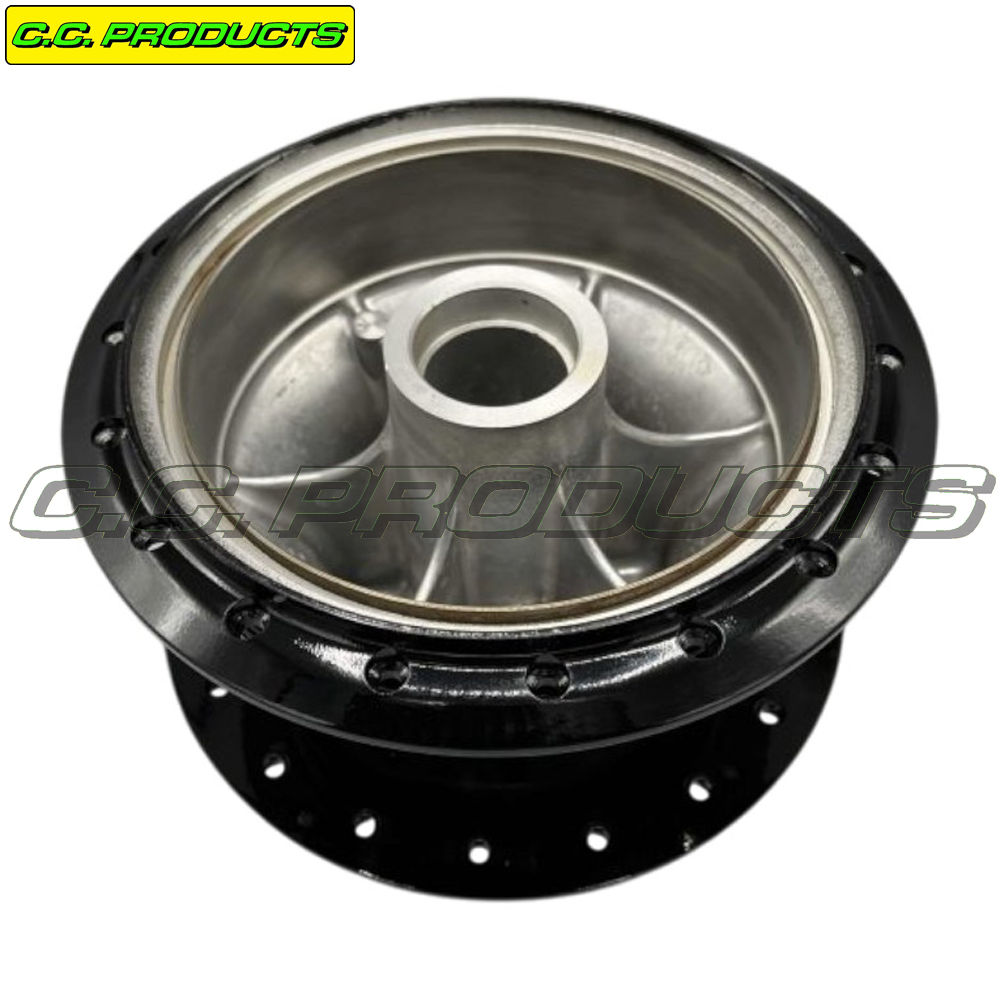

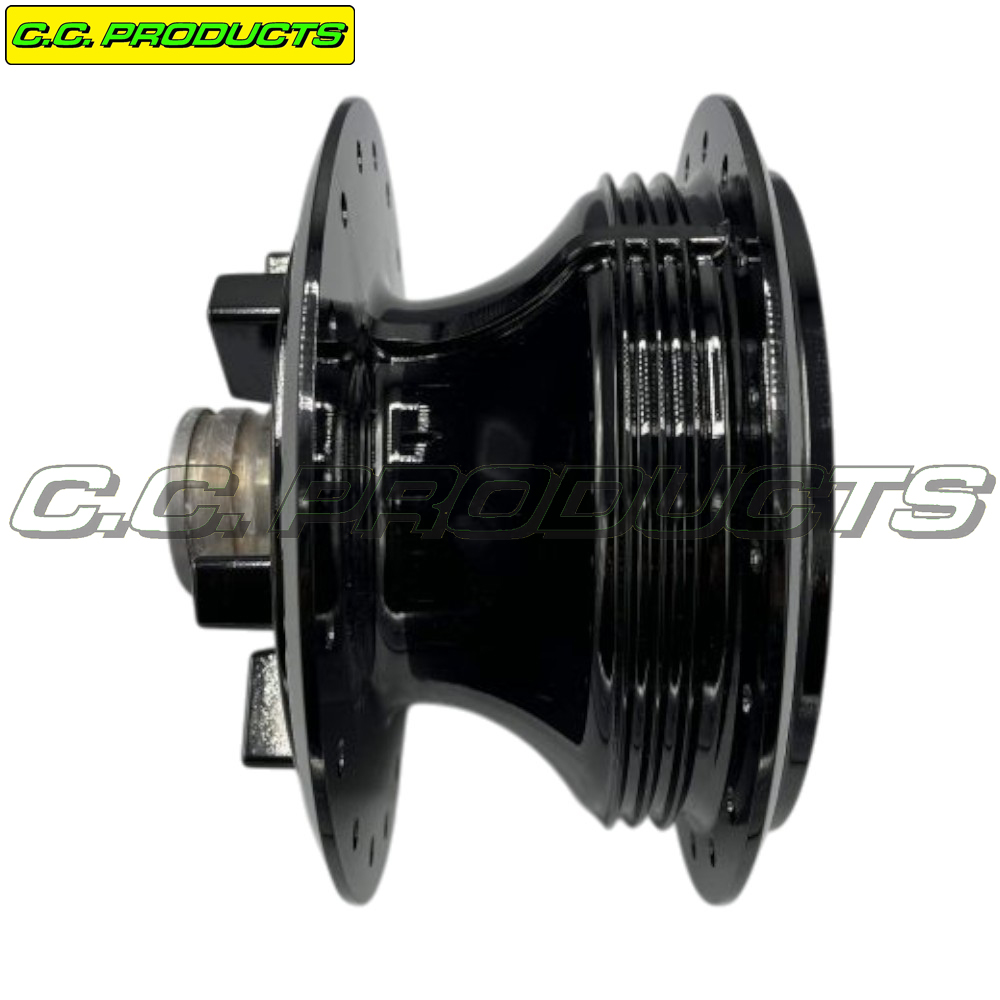

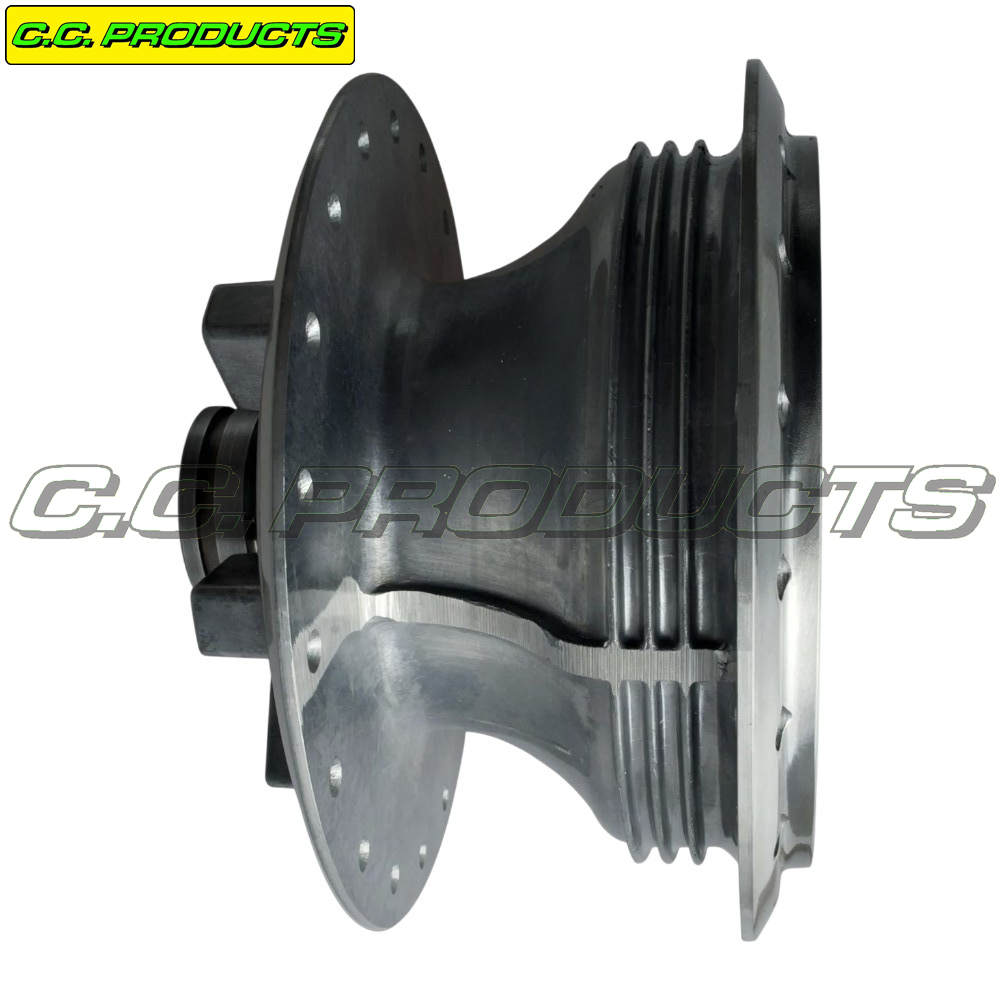

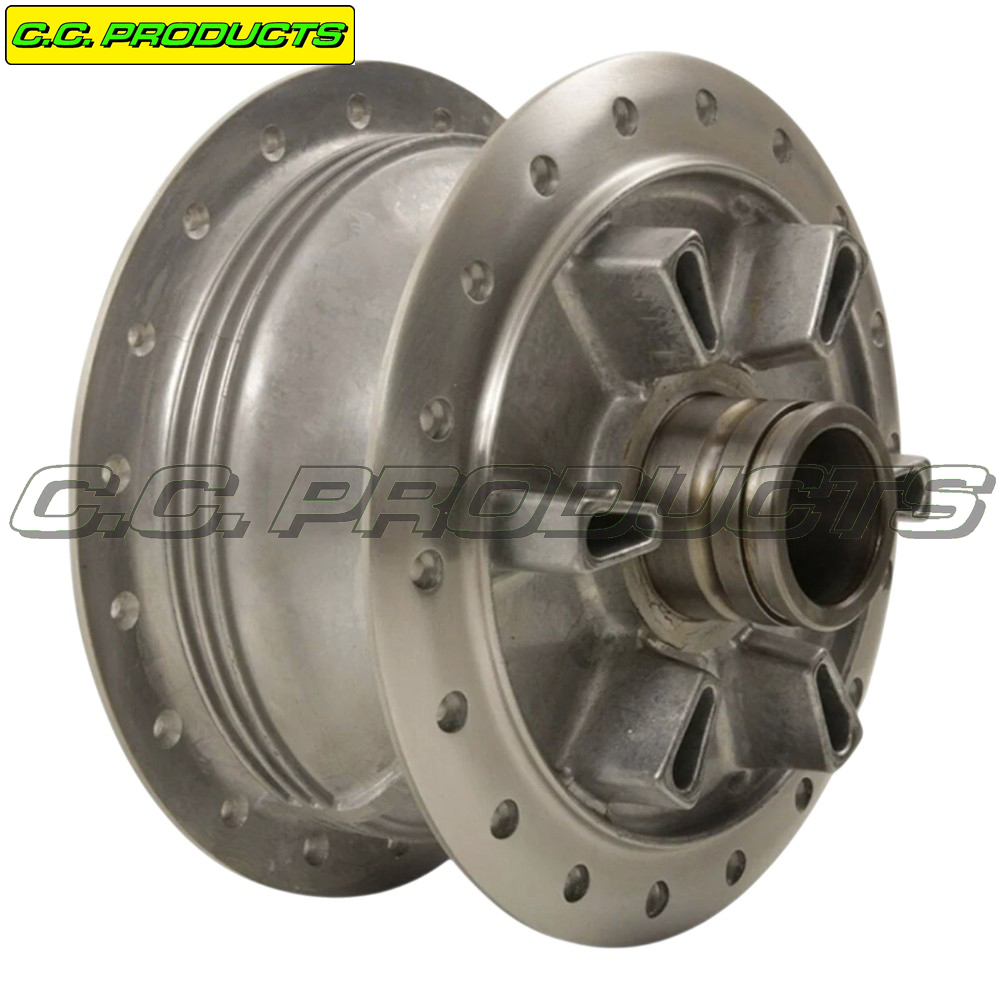

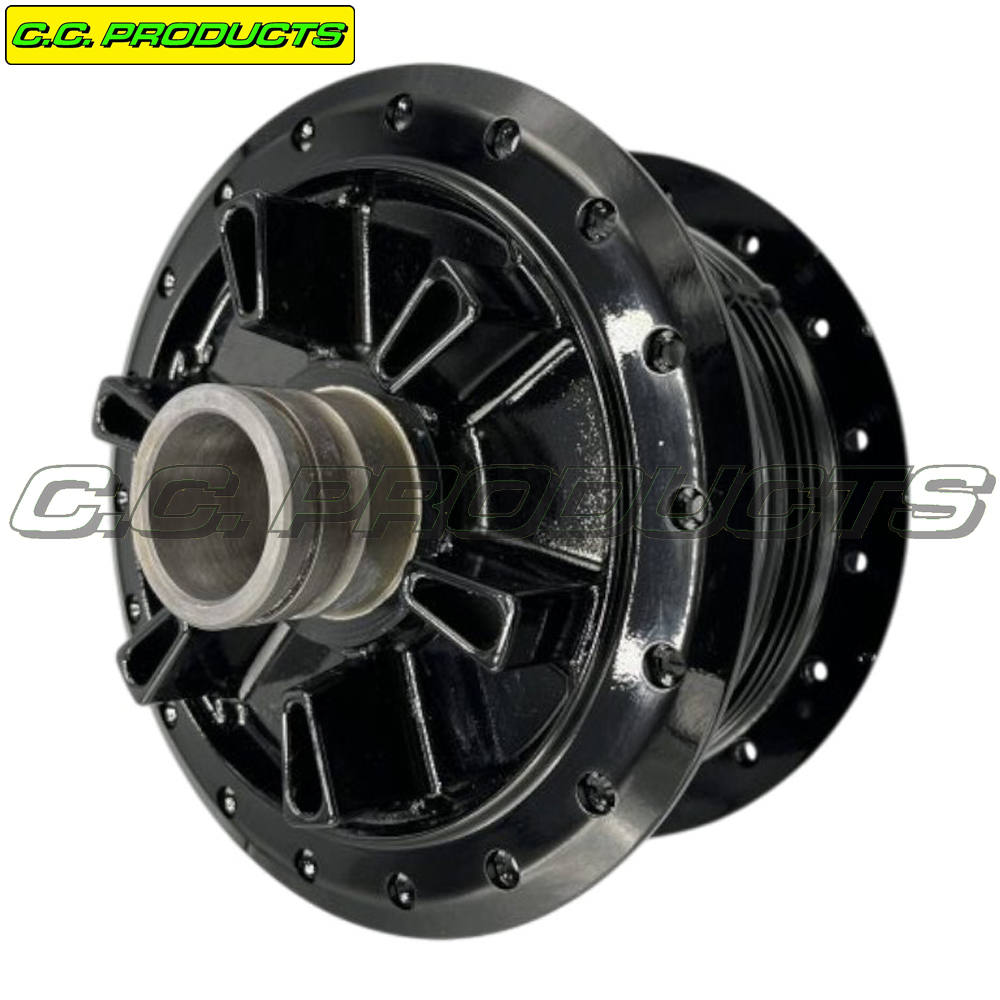

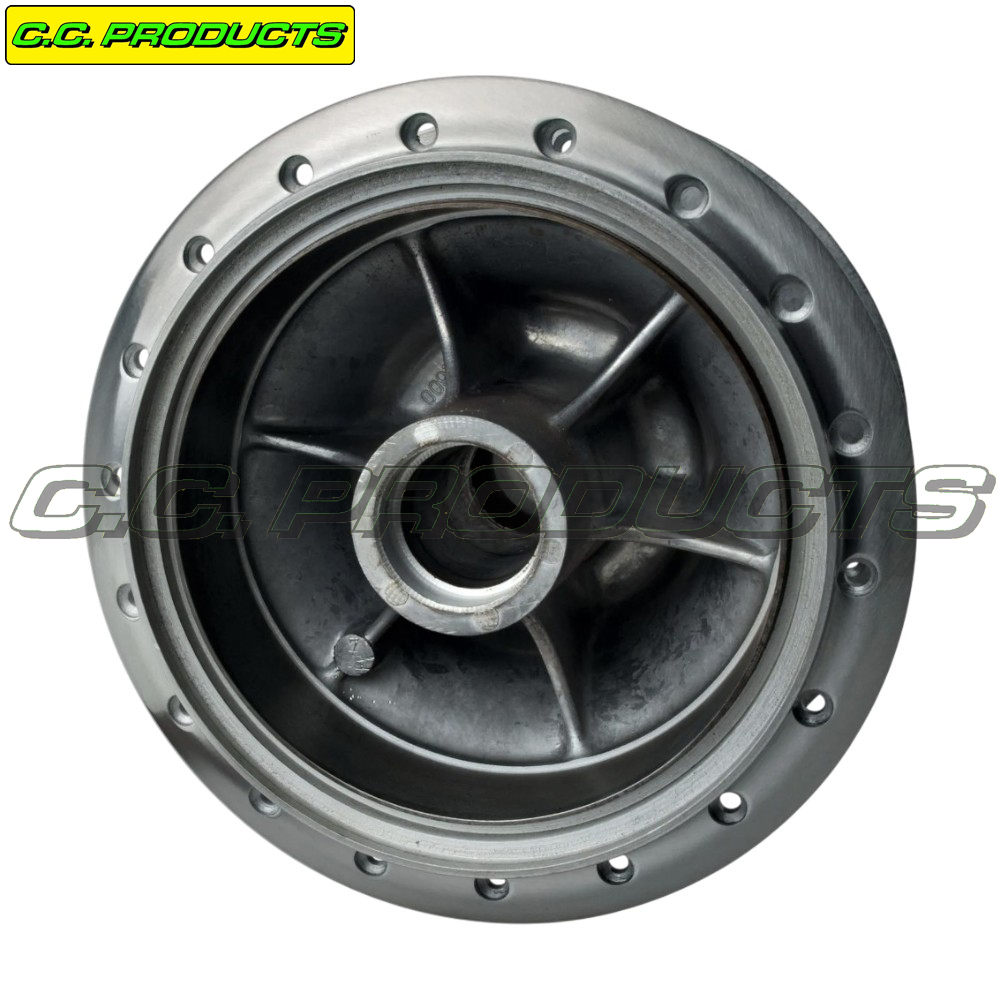

For 18-inch rear wheel hub 1E6-25311-00-33, 1E6-25311-00-38 and 1E6-25311-00-98.

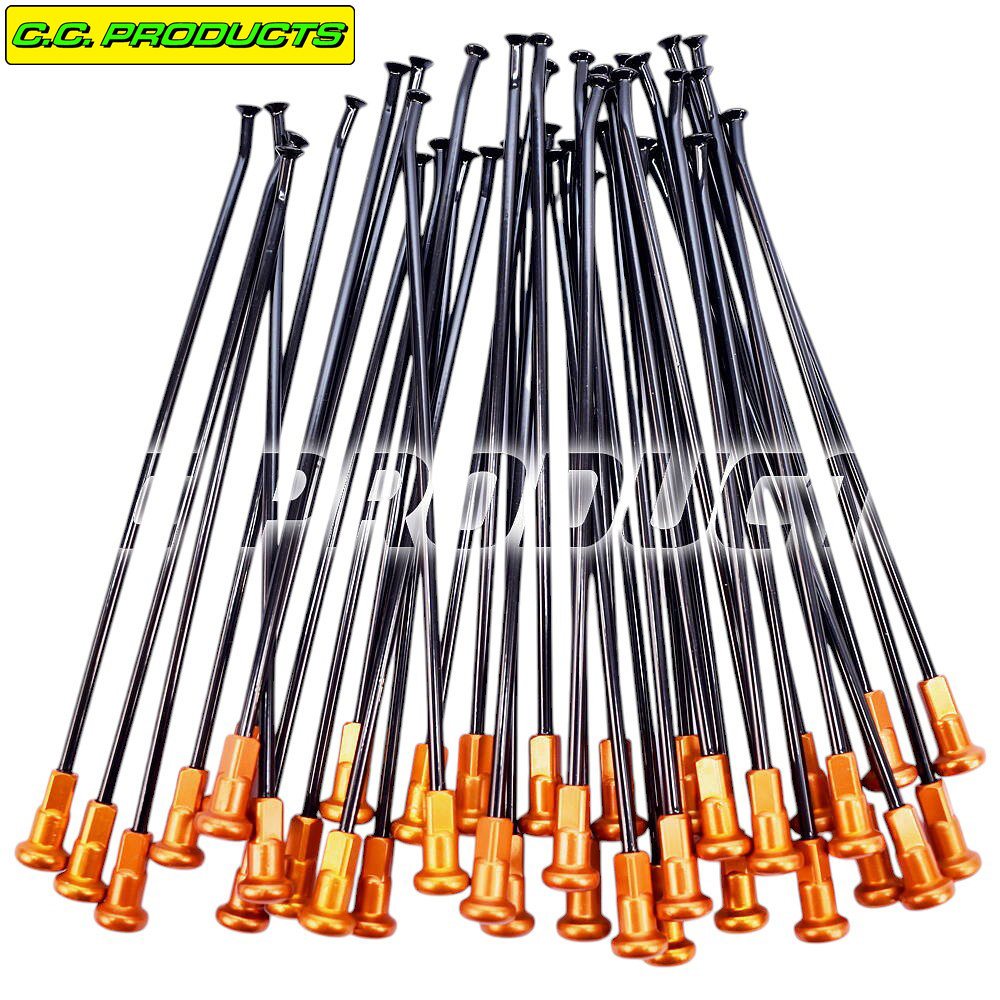

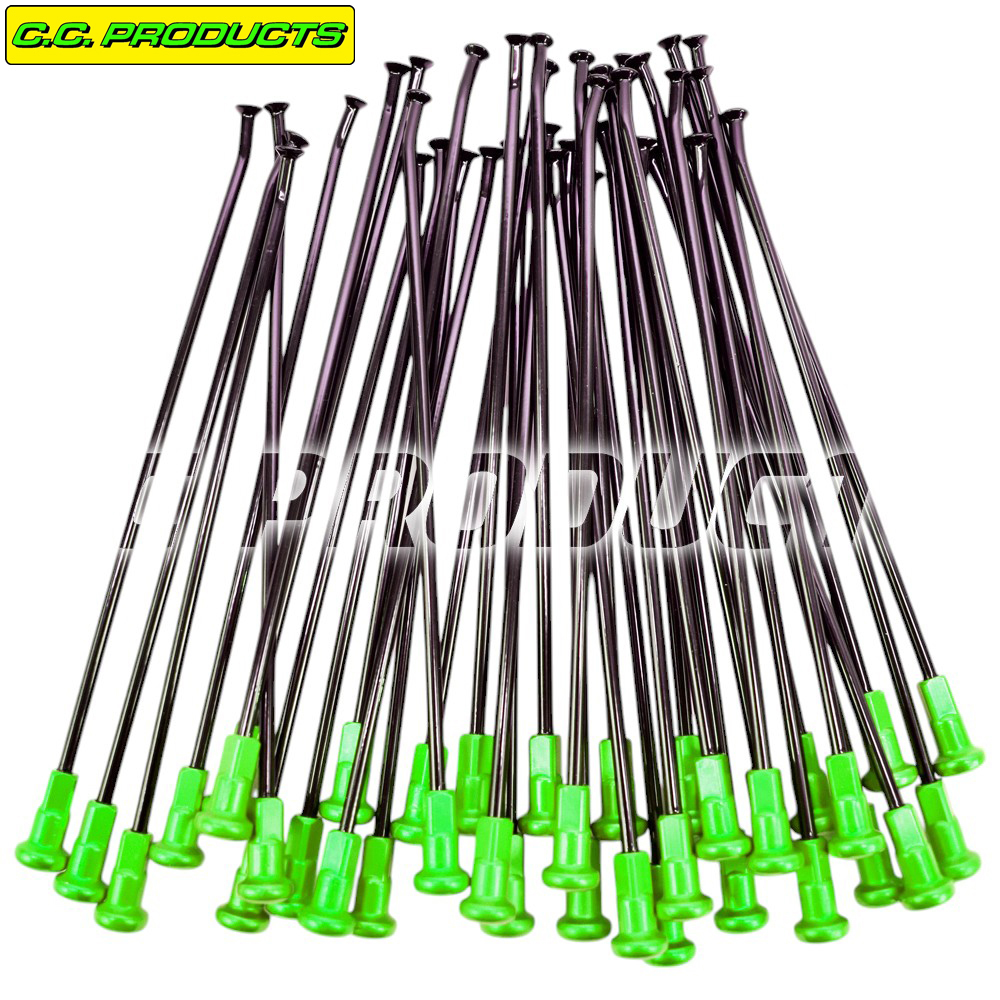

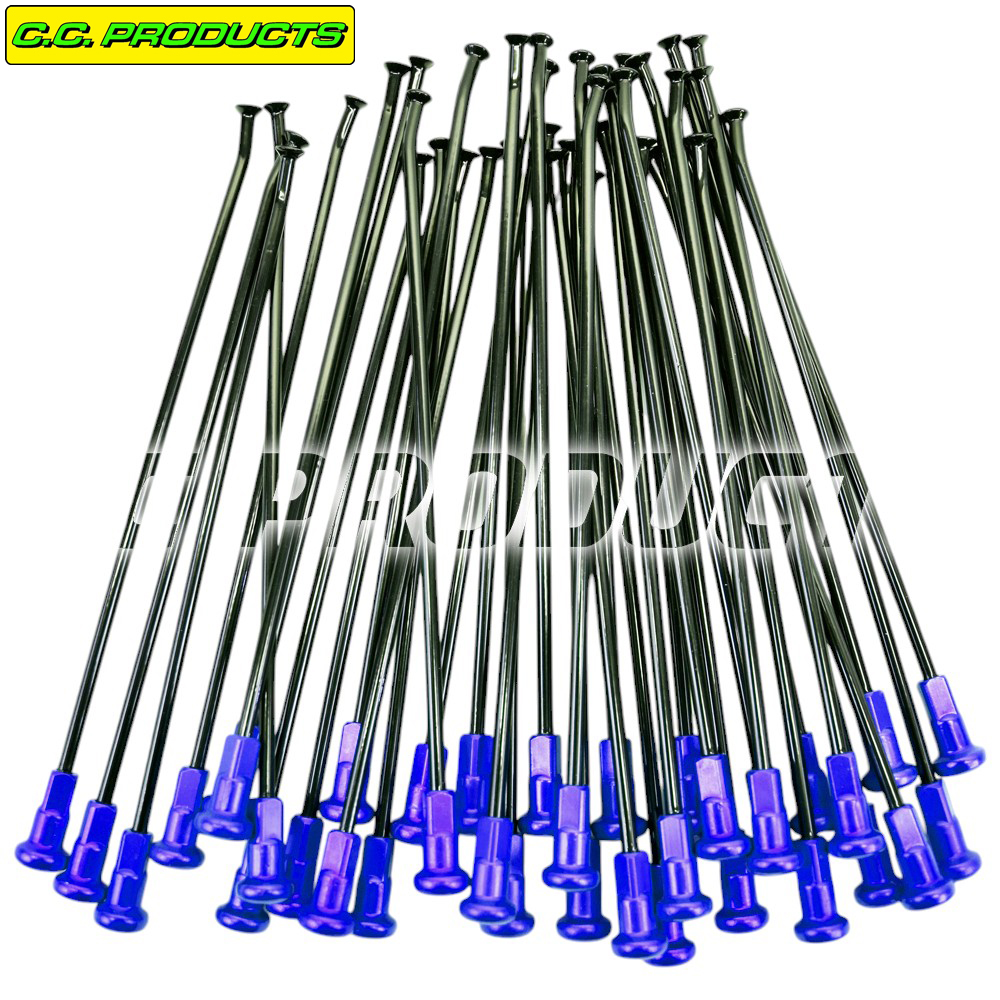

This spoke set has 36 spokes with spoke nipples.
Spoke size: 18 spokes of 4x161 mm. Outer spoke on both sides.
Spoke size: 18 spokes of 4x162 mm. Inner spoke on both sides.
OEM Ref. 5Y1-25304-00 (Spoke Set) replaced by 1E6-25304-00 and 48U-25304-00 replaced by 48U-25304-10.
18x2,15 Excel rim with article number 58-569 fits this spoke set.
18x2,50 Excel rim with article number 58-547 fits this spoke set.

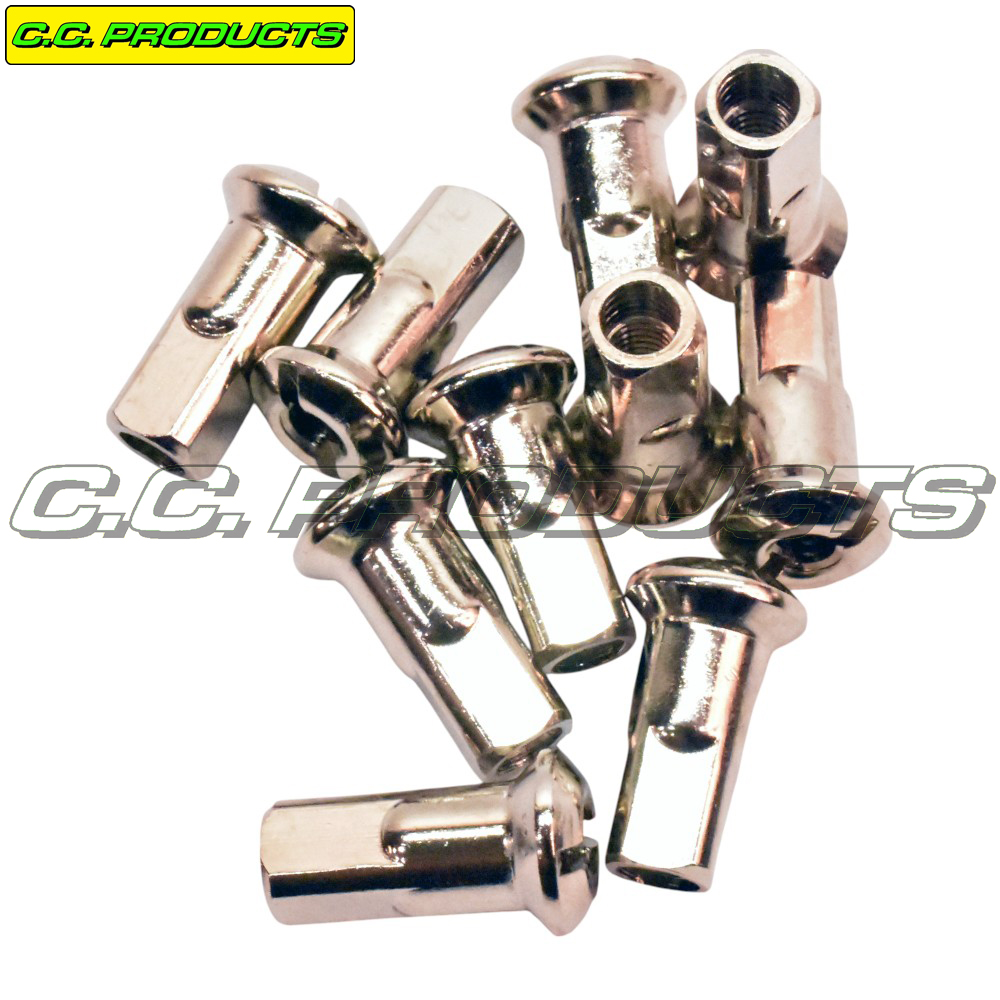

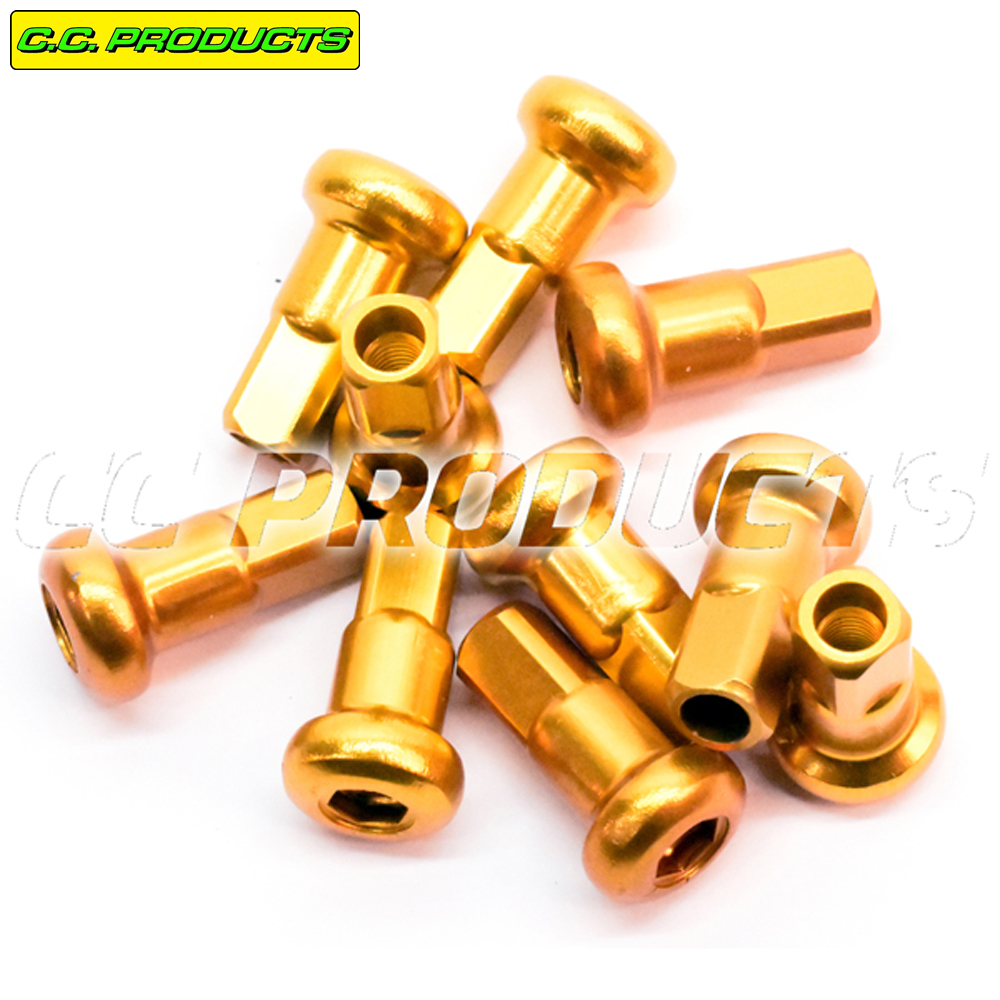

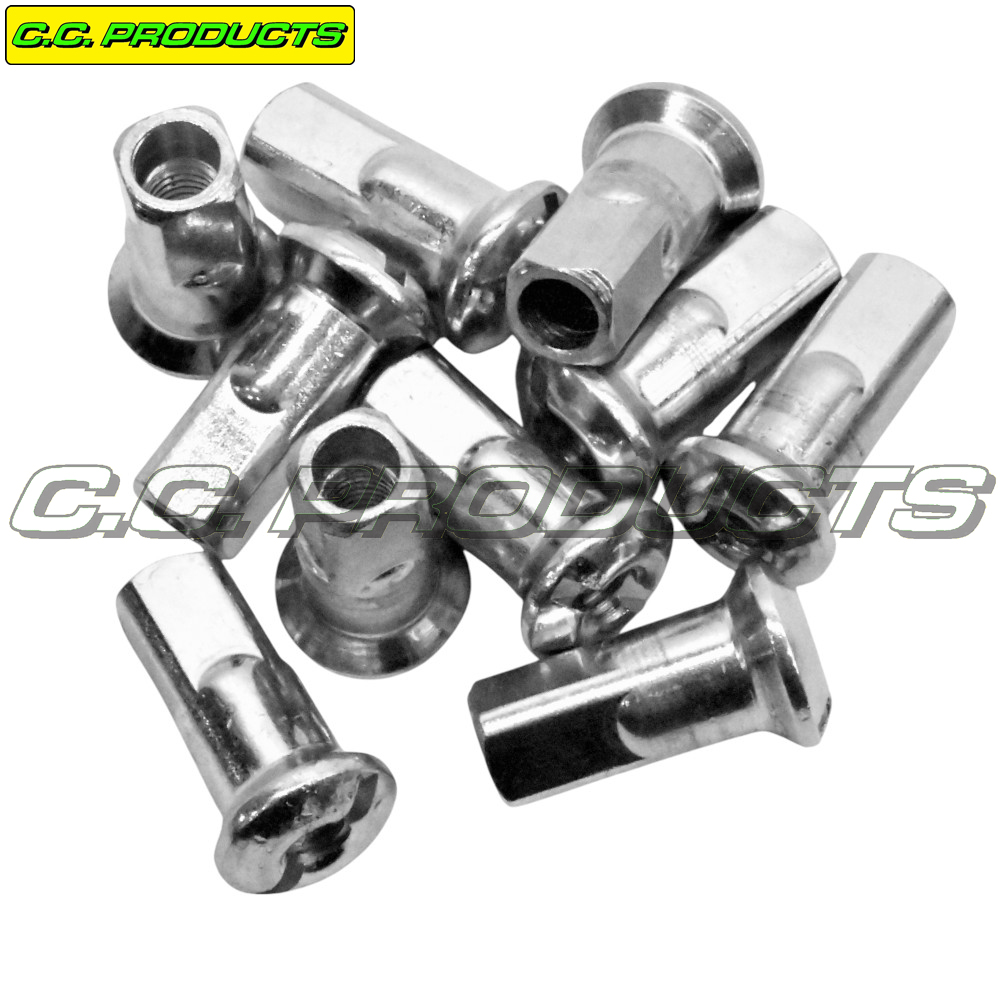

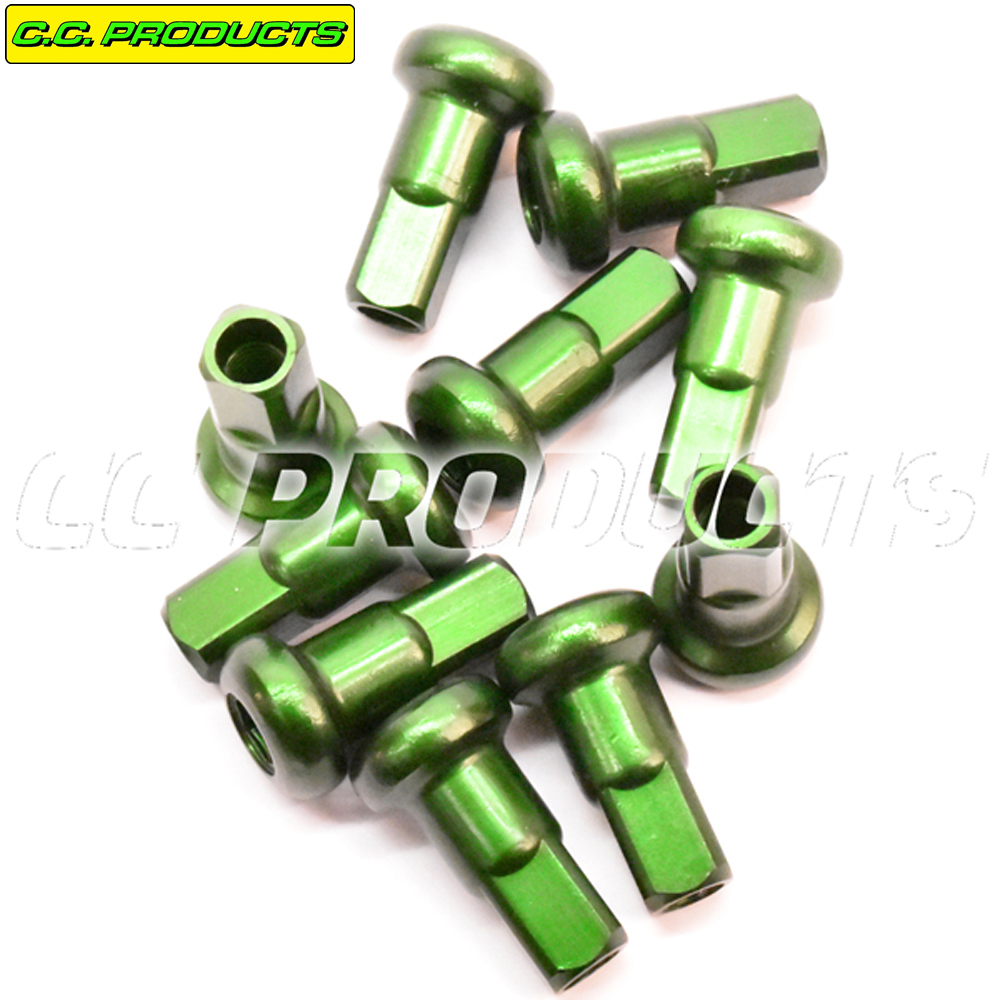

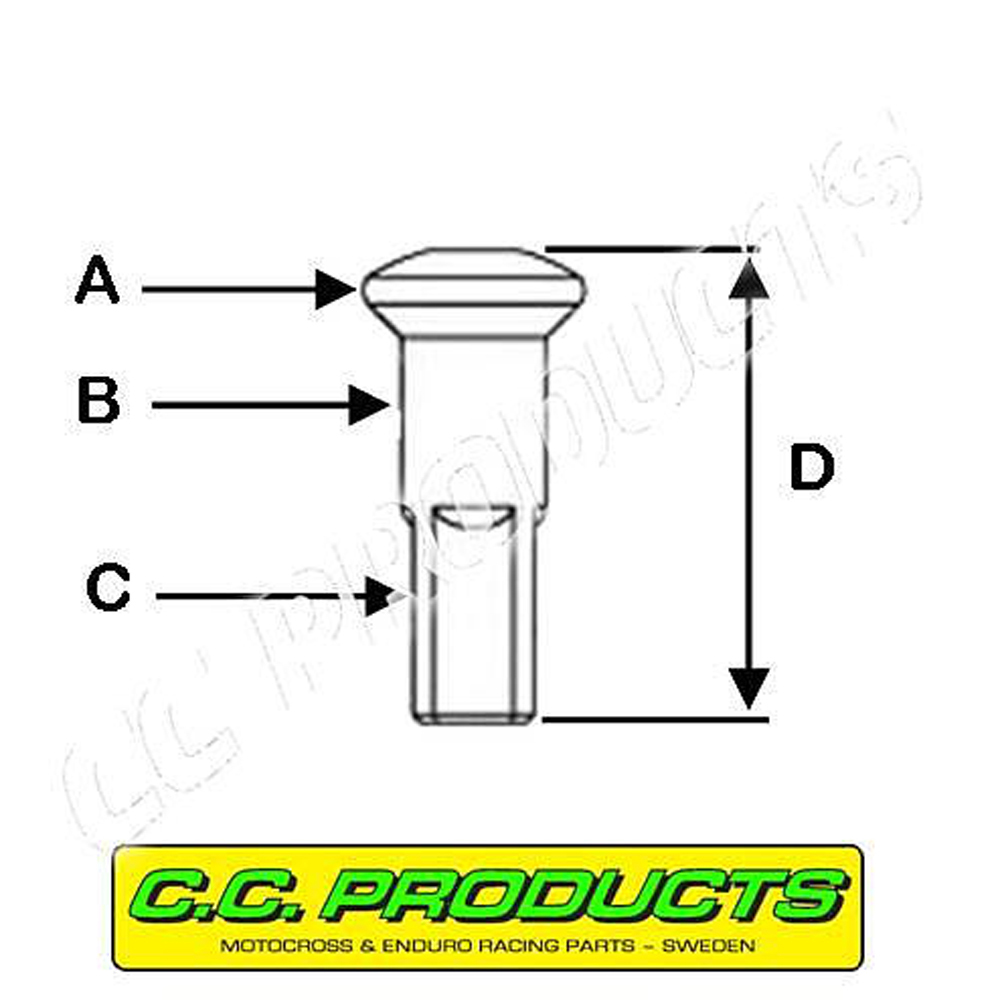

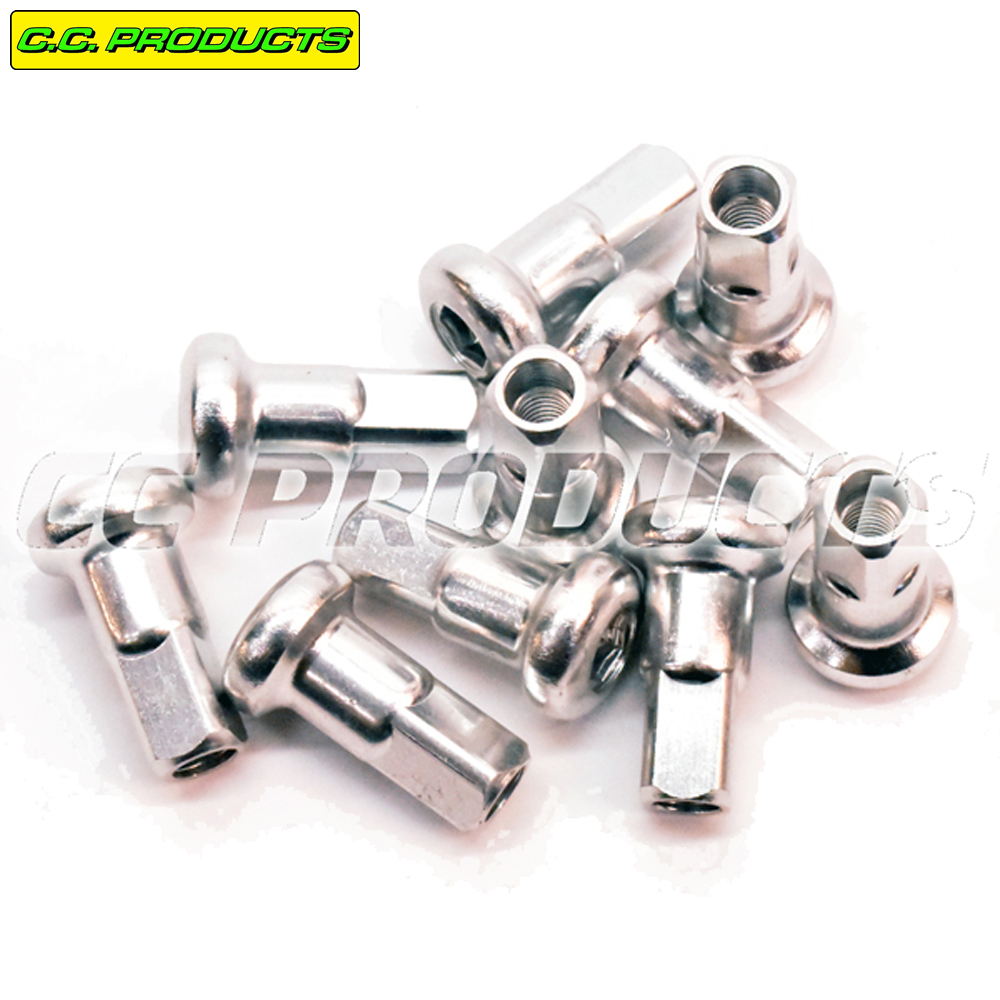

Nipple size: 7,0x20 mm. (8G/275)
If the spoke nipple holes are smaller or larger you may need to change spoke nipples to another size.
One spoke and nipple, 4x161 mm, have article number 50-0295-1
One spoke and nipple, 4x162 mm, have article number 50-0295-2
